Engineering Guide: Custom Molded Seal

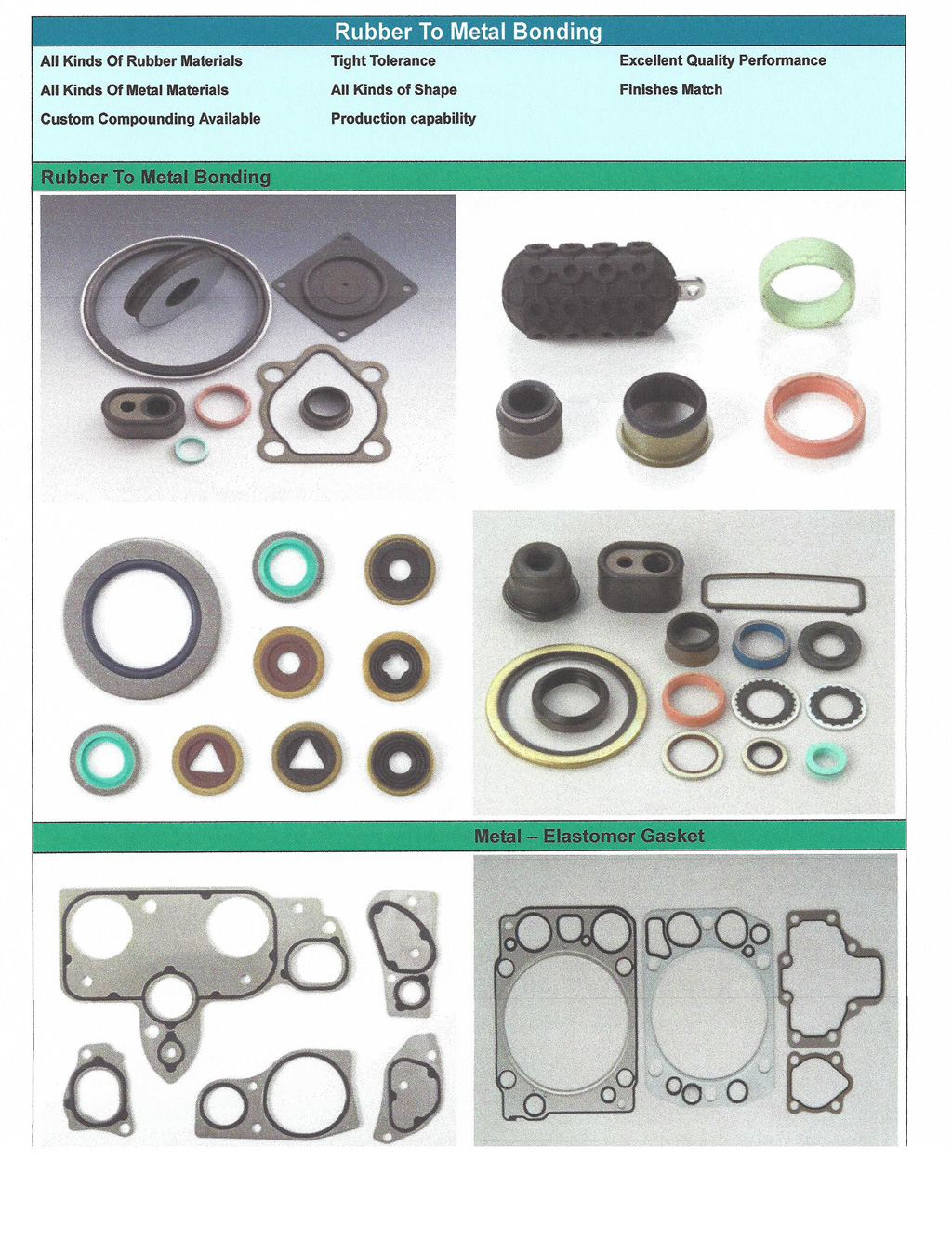

Engineering Insight: Material Selection in Custom Molded Seals

Material selection constitutes the foundational engineering decision in custom molded seal design, directly dictating functional lifespan and system integrity. Off-the-shelf seals frequently fail because they represent generalized compromises, not solutions engineered for specific operational parameters. Standard compounds prioritize broad market appeal over precision performance, inevitably sacrificing critical properties required in demanding industrial applications. The consequences manifest as premature extrusion, chemical degradation, thermal hardening, or excessive compression set – failures rooted in mismatched material characteristics rather than seal geometry alone.

Generic seals utilize base polymers formulated for moderate conditions. They lack the tailored resistance to aggressive media like specialized hydraulic fluids, sour gas (H₂S), or high-concentration oxidizers common in chemical processing. Similarly, standard temperature ranges (typically -40°C to +120°C) prove inadequate for cryogenic LNG handling or continuous operation above 150°C in automotive turbo systems. Crucially, off-the-shelf products exhibit inconsistent compression set resistance; under sustained load, they lose elastic recovery, leading to permanent leakage paths. This deficiency is particularly acute in dynamic applications requiring repeated deflection cycles. The absence of application-specific reinforcement also compromises tensile strength and tear resistance when seals face abrasive particulates or sharp-edged mating surfaces.

Material science dictates that optimizing one property often impacts others. Achieving superior fuel resistance in FKM may reduce low-temperature flexibility, necessitating specialized grades. Balancing ozone resistance with cost in EPDM requires precise filler and curing system selection. Custom formulation resolves these trade-offs by aligning the compound’s molecular structure and additive package with the client’s exact fluid, temperature, pressure, and mechanical duty cycle. Suzhou Baoshida’s engineering process begins with rigorous application analysis, followed by proprietary compounding to meet defined ASTM/ISO performance thresholds. This eliminates the guesswork and risk inherent in retrofitting standard seals.

The performance disparity between engineered and generic solutions is quantifiable across critical parameters:

Relying on standard seals introduces avoidable risk into critical systems. True sealing reliability demands material properties engineered to the application’s unique stress profile. Suzhou Baoshida’s technical partnership ensures the polymer chemistry matches the operational reality, transforming the seal from a potential failure point into a guaranteed performance component. Precision sealing begins not with the mold, but with the molecule.

Material Specifications

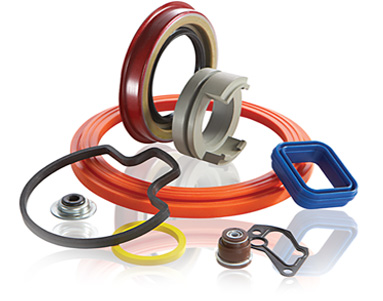

Material selection is a critical determinant in the performance, longevity, and reliability of custom molded rubber seals. At Suzhou Baoshida Trading Co., Ltd., we specialize in precision-engineered rubber seals tailored to meet the exacting demands of industrial, automotive, aerospace, and medical applications. Our expertise in material science enables us to recommend and manufacture seals using high-performance elastomers such as Viton, Nitrile (NBR), and Silicone, each offering distinct advantages based on environmental exposure, temperature range, chemical compatibility, and mechanical stress.

Viton, a fluorocarbon-based rubber (FKM), is renowned for its exceptional resistance to high temperatures, oils, fuels, and a broad spectrum of aggressive chemicals. It maintains structural integrity in continuous service temperatures up to 230°C (446°F), with intermittent exposure capability even higher. This makes Viton ideal for seals used in engine compartments, fuel systems, and chemical processing equipment where thermal and chemical stability are paramount. Additionally, Viton exhibits low gas permeability and excellent aging characteristics, contributing to long service life in demanding environments.

Nitrile rubber, or acrylonitrile butadiene rubber (NBR), is one of the most widely used elastomers in sealing applications due to its excellent resistance to petroleum-based oils and fuels, coupled with good abrasion resistance and tensile strength. Nitrile seals perform reliably in temperatures ranging from -30°C to 120°C (-22°F to 248°F), making them suitable for hydraulic systems, automotive O-rings, and industrial machinery. While not as thermally stable as Viton, Nitrile offers a cost-effective solution for applications where exposure to aliphatic hydrocarbons and lubricants is primary.

Silicone rubber (VMQ) is distinguished by its outstanding thermal stability across a wide temperature range, typically from -60°C to 200°C (-76°F to 392°F), and can be formulated for even broader extremes. It exhibits excellent resistance to ozone, UV radiation, and weathering, making it ideal for outdoor and high-visibility applications. Silicone also meets biocompatibility standards, enabling its use in medical and food-grade sealing systems. However, it has lower mechanical strength and abrasion resistance compared to Viton and Nitrile, necessitating design considerations for dynamic applications.

Below is a comparative summary of key physical and chemical properties for these materials:

Selecting the appropriate material requires a comprehensive understanding of the operational environment. Suzhou Baoshida Trading Co., Ltd. supports clients with material testing, prototyping, and full-scale production to ensure optimal seal performance and compliance with international standards.

Manufacturing Capabilities

Engineering Capability: Precision-Driven Custom Seal Development

Suzhou Baoshida Trading Co., Ltd. leverages a dedicated core of seven specialized engineers – five focused on advanced mold design and manufacturing, and two holding deep expertise in rubber compounding science – to deliver technically superior custom molded seals. This integrated engineering structure is fundamental to our OEM partnership model, ensuring solutions are optimized at both the molecular and mechanical levels from initial concept through to high-volume production. Our methodology transcends standard manufacturing by embedding material science and precision tooling expertise directly into the development lifecycle, mitigating common failure modes like compression set, extrusion, and chemical degradation inherent in demanding industrial applications.

Our Formula Engineers possess mastery over elastomer chemistry, enabling precise molecular-level customization. They develop and validate proprietary compounds meeting stringent international standards (ASTM D2000, ISO 3601) for specific fluid resistance, temperature extremes (-60°C to +300°C), and dynamic performance requirements. This capability allows us to formulate beyond standard material datasheets, creating bespoke solutions for aggressive media like biofuels, concentrated acids, or high-purity pharmaceuticals where off-the-shelf compounds fail. Concurrently, our Mould Engineers utilize advanced CAD/CAM (SolidWorks, UG NX) and mold flow simulation software to design tooling that guarantees dimensional accuracy, optimal material flow, and minimal flash. Their focus on Design for Manufacturability (DFM) ensures seamless scalability from prototype to full production, significantly reducing time-to-market and eliminating costly design iterations for our OEM clients.

This dual-engineer synergy is critical for complex OEM projects requiring zero-defect performance. We implement closed-loop validation processes where material behavior data directly informs mold cavity geometry adjustments, achieving exceptional consistency in critical parameters like cross-section tolerance and sealing force. Our facility supports full in-house prototyping and rigorous validation testing (compression set, volume swell, tensile properties) against client-specific performance criteria before tooling sign-off. This integrated approach minimizes risk and ensures the final seal performs reliably within the client’s assembled system, directly contributing to their product’s longevity and field success.

The following table outlines our core engineering specifications achievable through this integrated capability:

Suzhou Baoshida functions as a true engineering extension for global OEMs. Our seven-engineer team provides proactive technical consultation during the client’s design phase, identifying potential sealing challenges early and proposing validated material and geometry solutions. This collaborative, science-based approach ensures the custom molded seal is not merely a component, but a critical, reliability-engineered subsystem within the client’s final product, directly supporting their performance targets and reducing total cost of ownership through extended service life and minimized field failures. We deliver precision seals engineered for the real-world demands of your application.

Customization Process

Customization Process for Precision Molded Rubber Seals

At Suzhou Baoshida Trading Co., Ltd., the development of custom molded seals follows a rigorous, science-driven engineering workflow designed to meet exact OEM performance requirements. Each stage is optimized for material integrity, dimensional accuracy, and long-term reliability under demanding operational conditions. The process begins with Drawing Analysis, where engineering teams evaluate customer-provided technical drawings or 3D CAD models. Critical parameters such as cross-sectional geometry, tolerance class (per ISO 3302 and ISO 2768), sealing interface dimensions, and installation constraints are scrutinized. Finite Element Analysis (FEA) may be applied to simulate compression set behavior and stress distribution under expected load cycles. This phase ensures that the design is manufacturable and functionally robust before any material is processed.

Following drawing validation, the Formulation stage determines the optimal elastomer compound. Our rubber chemists select base polymers—such as NBR, EPDM, FKM, or silicone—based on fluid resistance, temperature range, and mechanical stress profiles. Additives including reinforcing fillers, vulcanizing agents, and aging inhibitors are precisely metered to achieve target hardness (Shore A 40–90), compression set (<25% at 150°C for 70 hrs), and volume swell (<15% in ASTM No. 3 oil). Each formulation is documented under internal material specification codes and subjected to baseline testing per ASTM D2000 standards.

Prototyping is executed using precision steel molds machined to final geometry, typically via CNC or EDM processes. Small-batch samples (10–50 units) are produced under controlled vulcanization conditions—time, temperature, and pressure are logged for traceability. These prototypes undergo dimensional inspection via coordinate measuring machines (CMM) and performance validation through leak testing, compression stress relaxation (CSR), and accelerated aging. Customer feedback is integrated at this stage, allowing for mold adjustments or compound refinement before tooling sign-off.

Upon approval, the project transitions to Mass Production. We deploy high-tonnage hydraulic presses with multi-cavity molds to achieve scalable output while maintaining ±0.1 mm dimensional consistency. In-line quality checks include 100% visual inspection and statistical sampling for physical property verification. All batches are traceable through lot numbering, with full material certifications (CoA, RoHS, REACH) provided. Production cycles are optimized for lean throughput, supporting just-in-time delivery to automotive, aerospace, and industrial OEM clients.

The following table outlines key technical specifications achievable through our customization pipeline:

This structured approach ensures that every custom molded seal meets the highest benchmarks in performance, consistency, and regulatory compliance.

Contact Engineering Team

Engineering Precision for Your Critical Sealing Applications

At Suzhou Baoshida Trading Co., Ltd., we transform complex sealing challenges into engineered solutions through molecular-level rubber formulation and precision molding expertise. Our custom molded seals are not off-the-shelf components but purpose-built barriers designed to withstand extreme pressure differentials, aggressive chemical exposure, and thermal cycling in aerospace, automotive, and semiconductor manufacturing environments. With ISO 9001-certified processes and in-house compounding laboratories, we control every variable from raw polymer selection to final dimensional validation, ensuring zero compromise on leakage integrity or service life. The table below summarizes our core material capabilities for rapid feasibility assessment.

Our engineering workflow begins with your failure mode analysis. We reverse-engineer leakage points using finite element analysis (FEA) to simulate compression set, extrusion gaps, and fluid compatibility under operational loads. Unlike generic suppliers, we adjust polymer chain architecture—modifying acrylonitrile content in NBR for fuel resistance or peroxide curing systems in EPDM for steam autoclaving—to match your specific duty cycle. Every mold undergoes cavity pressure monitoring during validation runs, with statistical process control (SPC) data provided for critical dimensions. This eliminates trial-and-error prototyping, reducing time-to-qualification by 40% versus industry benchmarks.

Initiate your sealing solution with direct engineering collaboration. Contact Mr. Boyce, our OEM Technical Director, at [email protected] to submit application parameters including media type, pressure cycles, temperature profiles, and dimensional schematics. Mr. Boyce will coordinate a 72-hour feasibility review with our materials science team, delivering a formal proposal with compound formulation data, mold flow analysis, and accelerated life testing protocols. For urgent RFQs, reference your project code in the subject line to trigger expedited review. Suzhou Baoshida does not sell rubber—we deliver leakage assurance through polymer science. Your next-generation seal begins with precise technical dialogue, not a catalog number.
