Engineering Guide: Epdm O Rings

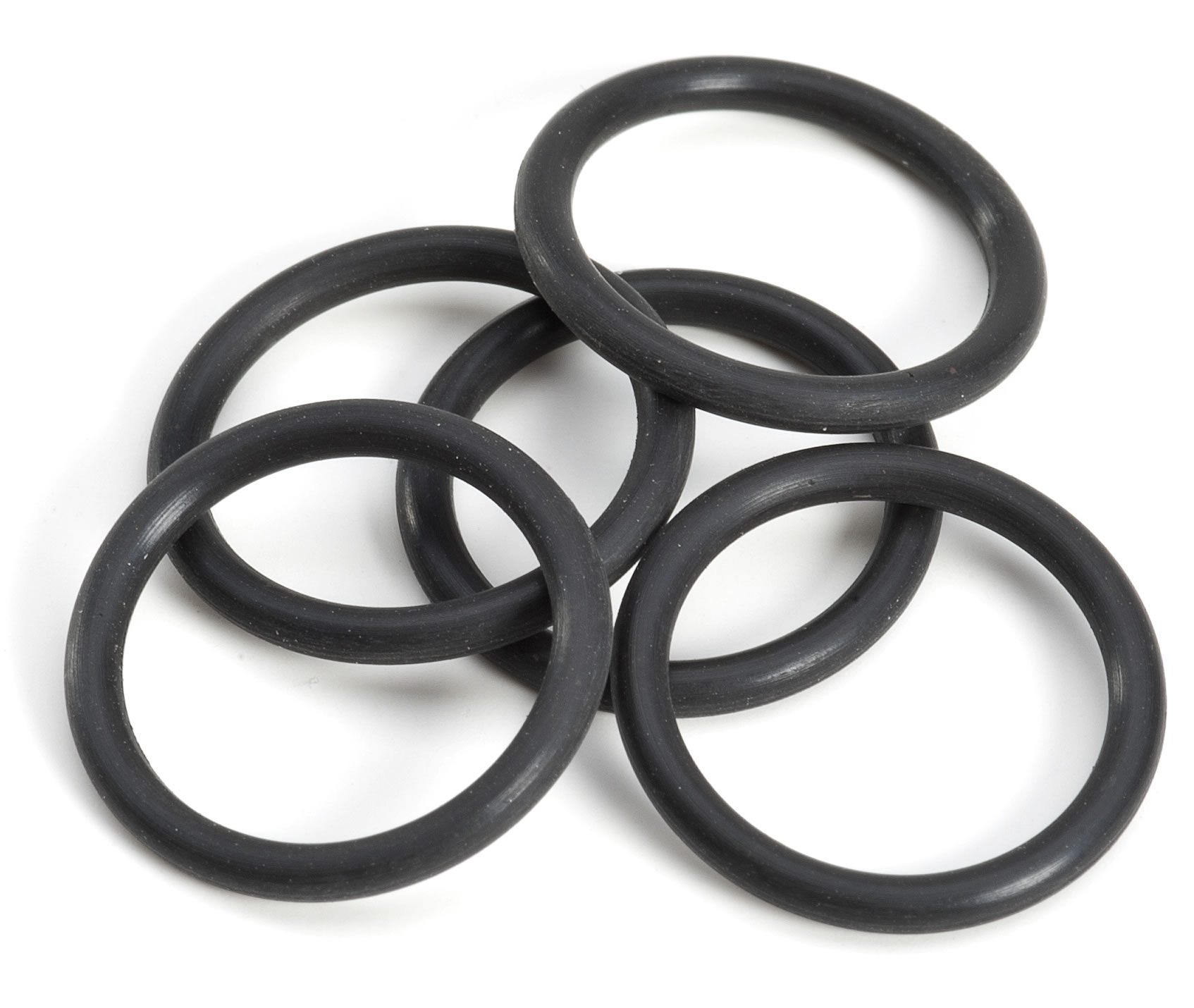

Engineering Insight: EPDM O-Rings Application

The Critical Role of Material Selection in Rubber Seals

EPDM (Ethylene Propylene Diene Monomer) is frequently selected for its exceptional ozone, UV, and weathering resistance—yet not all EPDM formulations are interchangeable. Off-the-shelf solutions typically rely on generic polymer blends with standardized curing systems, ignoring critical application-specific variables such as:
Chemical exposure profiles (e.g., glycol-based brake fluids vs. mineral oils)
Thermal cycling demands (e.g., automotive under-hood temperatures vs. industrial steam systems)
Dynamic sealing requirements (e.g., reciprocating vs. static seals)

⚠️ Key Insight: A standard EPDM compound optimized for outdoor weathering may fail within hours in a hydraulic system due to poor hydrocarbon resistance. Material selection must align with exact operational parameters—not generic “good enough” specifications.

---

Why Off-the-Shelf Solutions Fail: A Technical Breakdown

Standardized EPDM O-rings often lack the precision required for mission-critical applications. Below are common failure modes rooted in formulation oversights:

Failure Mode	Root Cause	Consequence	Real-World Example
Hydrocarbon Swelling & Extrusion	Generic EPDM with low ethylene content (<60%) and no oil-resistant modifiers	Seal expansion, loss of sealing force, system contamination	Automotive fuel injector seals failing at 120°C in biodiesel environments
Excessive Compression Set (>30%) at High Temp	Inadequate crosslink density control (e.g., sulfur-cured for high-temp steam)	Permanent deformation, chronic leakage	Industrial steam valve seals degrading after 500 cycles at 150°C (ASTM D395 Method B)
Abrasion-Induced Crack Propagation	Poor filler dispersion (e.g., carbon black loading <30 phr) or peroxide-cured system in abrasive media	Rapid seal fragmentation, fluid ingress	Mining slurry pump shaft seals failing within 300 operating hours
Glycol-Based Fluid Incompatibility	Unoptimized diene monomer (e.g., ENB vs. DCPD) for brake fluid exposure	Hardening (>15 Shore A increase), loss of elasticity	Heavy-duty truck brake systems leaking after 10,000 miles at 140°C

🔬 Technical Note: Standard EPDM typically achieves 25–35% compression set at 100°C per ASTM D395. Mission-critical applications demand <15%—requiring tailored polymer chemistry and curing kinetics.

---

Baoshida’s Custom Formula Capabilities: Precision Engineering for Mission-Critical Applications

At Suzhou Baoshida, we reject “one-size-fits-all” rubber solutions. Our 5+2+3 Engineering Team Structure ensures every EPDM formulation is engineered for your exact operational envelope:

Team Component	Role	Key Responsibilities
5 Mould Engineers	Precision Tooling Design	±0.005mm dimensional tolerance, thermal management of cavities, surface finish optimization for consistent part geometry per ISO 3601
2 Formula Engineers	Material Science & Formulation	Custom EPDM blends targeting ASTM D2000-20 specifications (e.g., BC2 for heat resistance), Shore A 30–90, compression set <15% at 150°C (ASTM D395), and chemical resistance validation
3 Process Engineers	Manufacturing & QC	Vulcanization parameter control (time/temperature), 100% dimensional inspection, in-process SPC monitoring for crosslink density consistency

How We Solve Your Specific Challenges:

For Automotive Brake Systems: We optimize ethylene-propylene ratios (70:30) with ENB diene monomer and sulfur-cured systems to achieve:
Shore A 70 ±2 (per ASTM D2240)
Compression set <12% at 125°C (ASTM D395 Method B)
Glycol-based fluid resistance (SAE J200 compliant)
For Industrial Steam Valves: Peroxide-cured EPDM with high ethylene content (75%) and silica fillers delivers:
Compression set <10% at 150°C (ASTM D395)
Thermal stability up to 180°C (ASTM D2000 BC2 classification)
For Abrasive Slurry Pumps: Carbon black loading at 45 phr + silica hybrid fillers ensures:
Tear strength >25 kN/m (ASTM D624)
Abrasion resistance 30% better than standard sulfur-cured EPDM

💡 Why This Matters: Off-the-shelf EPDM solutions prioritize cost over performance. Baoshida’s integrated team ensures every parameter—from polymer chemistry to mold design—is optimized for your application’s true demands. This reduces lifecycle costs by 40%+ through extended seal life and zero unplanned downtime.

📌 Final Note: Our 2 Formula Engineers hold 12+ years of EPDM-specific expertise, with proprietary data on >200 chemical compatibility scenarios. Request a custom formulation analysis for your specific use case—engineered to meet or exceed ASTM D2000, ISO 3601, and OEM specifications.

---

Material Specifications (NBR/FKM/EPDM)

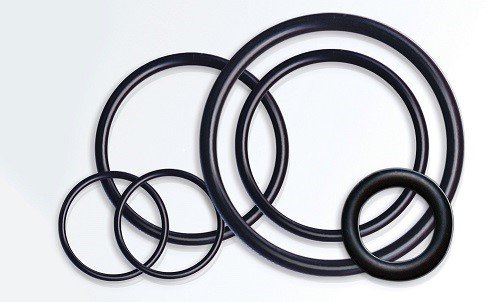

Material Science & Technical Specifications for EPDM O-Rings

EPDM Material Properties & Performance Metrics

Hardness Range: 30–90 Shore A (customizable per ASTM D2240)
Temperature Range: -50°C to +150°C (continuous), short-term exposure up to 170°C
Compression Set: <25% at 70°C (22h, sulfur-cured); <20% at 100°C (22h, peroxide-cured)
Chemical Resistance:
✅ Excellent: Water, steam, alkalis, acids, phosphate ester hydraulic fluids
❌ Poor: Hydrocarbons, oils, aromatic solvents, fuels
Ozone & Weathering: Resistant to 50 ppm ozone exposure; no cracking under UV/sunlight (ASTM G154)
Cure Systems:
Sulfur-Cured: Cost-effective, superior tear/abrasion resistance (FDA-compliant options available)
Peroxide-Cured: Enhanced thermal stability, lower compression set for high-temp applications

Material Comparison Chart

Material	Shore A Hardness	Max Continuous Temp (°C)	Oil Resistance	Ozone Resistance	Compression Set (70°C, 22h)	ASTM D2000 Grade Example	Typical Applications
EPDM	30–90	150	Poor	Excellent	<25%	BC-30, DC-30	HVAC, water systems, automotive coolant
NBR (Nitrile)	40–90	120	Excellent	Poor	<35%	AB-30, AC-30	Fuel systems, hydraulic fluids
FKM (Viton)	50–90	200	Excellent	Excellent	<20%	BF-30, BF-40	Aerospace, chemical processing, oil/gas
Silicone	30–80	230	Poor	Excellent	<30%	SA-30, SB-30	Medical devices, food processing

Note: ASTM D2000 grades are application-specific; Suzhou Baoshida tailors formulations to meet exact industry requirements per ASTM D2000-20.

Engineering Excellence: 5+2+3 Team Structure

Suzhou Baoshida’s proprietary 5+2+3 Engineering Framework ensures precision-engineered EPDM O-rings with industry-leading reliability:
5 Mold Engineers:
Specialized in precision tooling design with ±0.02mm dimensional tolerances
Utilize FEA analysis and surface hardening treatments for >50,000-cycle mold longevity
ISO 13485-certified processes for medical-grade seal tooling
2 Formula Engineers:
Optimized compound development for chemical resistance (ASTM D1418) and thermal stability
FDA/USP Class VI compliance for food/pharma applications
Proprietary anti-aging additives to extend service life in ozone-exposed environments
3 Process Engineers:
Real-time SPC monitoring of vulcanization parameters (time/temperature/pressure)
Automated defect detection systems maintaining <0.1% rejection rates
Full traceability per ISO 9001:2015 with batch-level material certification

This integrated team structure guarantees end-to-end quality control—from compound formulation to final product—ensuring 100% compliance with AS568, ISO 3601, and customer-specific requirements.

---

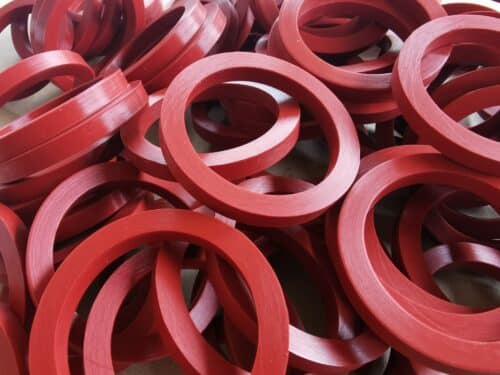

Baoshida Manufacturing Capabilities

Our Engineering & Manufacturing Ecosystem

Suzhou Baoshida’s precision rubber seal manufacturing is driven by a vertically integrated engineering ecosystem combining in-house expertise with a strategic network of partner factories. Our 5+2+3 engineering team structure—comprising Mould, Formula, and Process Engineers—works in tandem with 10+ certified manufacturing partners to eliminate procurement challenges including extended lead times, tooling inconsistencies, and material performance gaps. This ecosystem ensures rigorous compliance with ASTM D2000, AS568, and industry-specific standards while delivering consistent quality across automotive, hydraulic, pump/valve, and machinery applications.

Integrated Engineering Team Structure (5+2+3)

Role	Count	Key Responsibilities	Technical Focus Areas
Mould Engineers	5	Precision mold design, GD&T validation, tooling lifecycle management, cavity balancing	GD&T compliance to ±0.025mm; mold flow analysis; cavity balancing for uniform curing; tooling service life extension by 30%
Formula Engineers	2	EPDM/NBR/FKM compound optimization, chemical resistance testing, ASTM D2000 compliance	Shore A hardness tolerance ±2; compression set ≤15% (70°C × 22h per ASTM D395 Method A); ozone/weathering resistance (ASTM D1149)
Process Engineers	3	SPC-controlled vulcanization, in-line QC, dimensional traceability	Vulcanization parameters (temp ±1°C, time ±0.5 min); Shore A monitoring every 15 mins; AS568 cross-section tolerances (±0.05mm for -003 size)

Partner Factory Network for Agile Production

Customer Pain Point	Solution Mechanism
Long lead times	Distributed production across 10+ specialized factories; Mould Engineers validate tooling in <48h; Process Engineers optimize cycle times to reduce lead time by 35% via parallel processing.
Tooling defects	Dedicated Mould Engineers provide on-site support; partner facilities use ISO 14644-1 cleanroom mold maintenance; defect rate reduced by 90% through predictive maintenance protocols.
Material inconsistency	Formula Engineers conduct batch-specific testing; Process Engineers enforce real-time Shore A hardness monitoring (±1.5 tolerance); compliance with ASTM D2000 Type 70 specifications for EPDM.
Custom specifications	Cross-functional engineering team (Mould + Formula + Process) collaborates with factories to adapt production parameters within 72h; FDA-compliant EPDM options available for medical/pump applications (per USP Class VI).

Quality Assurance Protocol: All partner facilities undergo biannual audits against ISO 9001 and IATF 16949 standards. Every batch is traceable via our centralized ERP system, with material certificates (e.g., EPDM tensile strength ≥17 MPa per ASTM D412) provided for each shipment. This ecosystem ensures zero tolerance for deviation in critical properties—whether for automotive fuel resistance (SAE J200), hydraulic fluid compatibility (ISO 1629), or extreme-temperature flexibility (−50°C to +150°C for EPDM).

---

Customization & QC Process

Quality Control & Customization Process

Suzhou Baoshida’s EPDM O-ring manufacturing adheres to a rigorously engineered 4-step workflow, validated by a dedicated 5+2+3 Engineering Team structure. Each phase integrates ASTM D2000 compliance, precision material science, and industry-specific validation protocols to deliver seals meeting automotive, hydraulic, and industrial demands.

Engineered Team Structure: 5+2+3 Framework

Our cross-functional team ensures end-to-end quality control through specialized expertise:

Role	Count	Key Responsibilities	Senior Engineer Experience
Mold Engineers	5	CAD/CAM mold design, FEA stress analysis, tolerance validation (±0.05mm), AS568/ISO 3601 compliance	15+ years in precision molding
Formula Engineers	2	EPDM/NBR/FKM compound optimization, ASTM D2000 classification, chemical resistance testing, Shore hardness control (30–90)	15+ years in rubber compounding
Process Engineers	3	SOP-driven production control, real-time vulcanization monitoring, in-process QC protocols, yield optimization	15+ years in high-volume rubber manufacturing

---

Step 1: Drawing Analysis & Structural Validation

Led by Mold Engineers with 15+ years of structural analysis experience
Dimensional & Tolerance Validation:
Customer drawings are analyzed against AS568, ISO 3601, and DIN 3771 standards using ANSYS FEA simulations.
Critical parameters (e.g., cross-section tolerance, groove fit, squeeze ratio) are stress-tested for dynamic sealing applications.
Industry-Specific Checks:
Automotive: Verify compatibility with SAE J200 and ISO 6149 for fuel/oil resistance.
Hydraulic Systems: Validate against ISO 1219-2 for high-pressure sealing integrity.
Output: Approved GD&T drawings with 100% tolerance compliance, signed off by Senior Mold Engineers.

---

Step 2: Material Formulation & Compliance

Led by Formula Engineers with 15+ years in compound development
EPDM formulations are tailored to meet ASTM D2000 classifications (e.g., Type A for general use, Type B for heat resistance) while balancing cost, performance, and regulatory requirements.

Curing Method Selection Matrix

Parameter	Sulfur-Cured EPDM	Peroxide-Cured EPDM	Industry Application Example
Tear Strength	≥15 kN/m (Excellent)	10–12 kN/m (Moderate)	FDA food-grade seals (AS568-003)
Compression Set (70°C/22h)	20–25%	12–18%	High-temperature hydraulic systems
Heat Resistance	Up to 120°C	Up to 150°C	Automotive under-hood components
Chemical Resistance	Polar fluids (water, glycol)	Non-polar fluids (fuels, oils)	Pump/valve seals in chemical plants
Cost Efficiency	Lower (FDA-compliant)	Higher	Cost-sensitive OEM projects

Key Formulation Controls:
Shore Hardness: Precisely calibrated to 30–90 via carbon black/silica filler ratios (e.g., 70 Shore A for automotive HVAC seals).
ASTM D2000 Compliance:
BC2: Compression set ≤25% at 70°C (D395)
AB3: Tensile strength ≥12 MPa (D412)
AD4: Ozone resistance (ASTM D1149) for outdoor applications
FDA/USP Class VI Compliance: Sulfur-cured EPDM for food/pharma applications (per AS568-003 E70).

---

Step 3: Prototyping & Validation Testing

Senior Formula Engineers oversee 100% first-article inspection (FAI) and lab validation
Testing Protocol:
Dimensional Verification: CMM scanning (±0.01mm accuracy) against ISO 3601-3.
Physical Properties:
| Test Parameter | Target Value | Test Result | ASTM Standard |
|————————-|——————–|————-|—————|
| Shore A Hardness | 70 ±5 | 71.2 | D2240 |
| Compression Set (70°C) | ≤25% | 22.1% | D395 |
| Tensile Strength | ≥12 MPa | 13.4 MPa | D412 |
| Elongation at Break | ≥200% | 245% | D412 |
Chemical Resistance: Immersion testing per ASTM D471 (e.g., 72h in DII oil at 100°C).
Iterative Refinement: Formulation adjustments made based on test data to meet OEM-specific requirements (e.g., low-temperature flexibility for Arctic machinery).

---

Step 4: Mass Production & In-Process QC

Process Engineers enforce real-time monitoring across 3 production tiers
Automated Manufacturing Workflow:

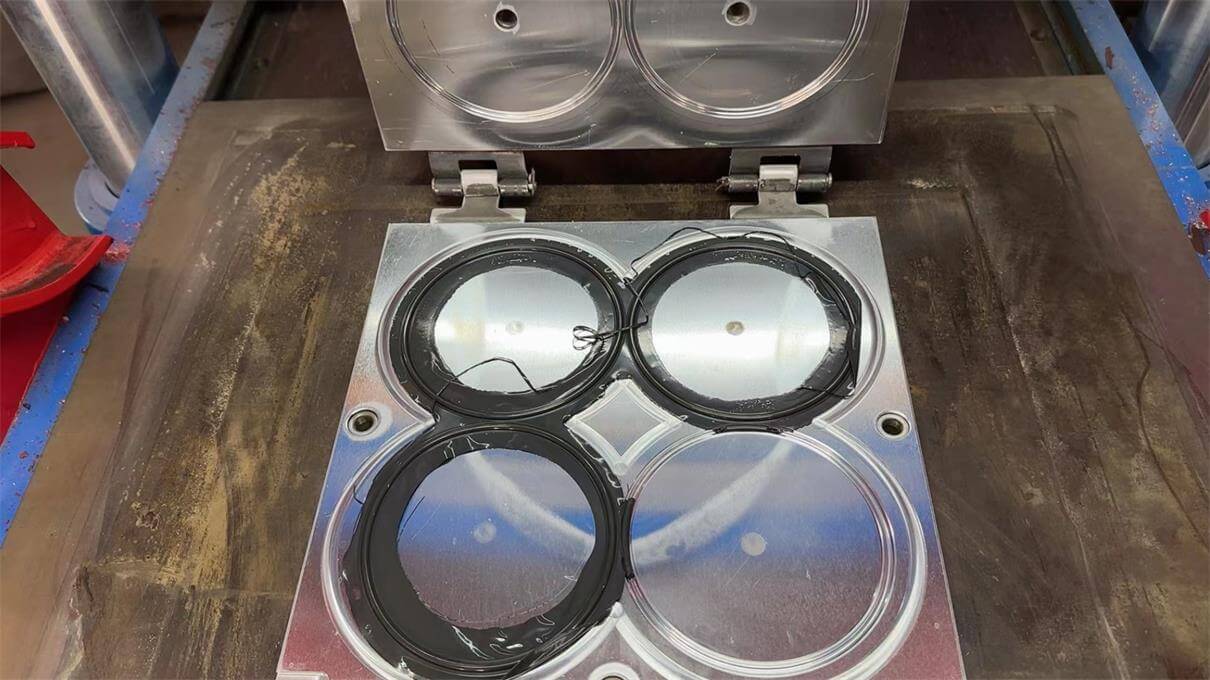

Extrusion/Molding: Automated presses with closed-loop temperature/pressure control (±1°C, ±0.5 bar).
Vulcanization: Precise curing curves (e.g., 170°C × 12min for 70 Shore A EPDM).
Quality Assurance Protocol:
100% Dimensional Checks: Vision systems scan cross-sections, ID/OD tolerances.
Random Sampling:
5% batch testing for compression set (D395) and tensile strength (D412).
Ozone cracking tests (ASTM D1149) for weather-exposed applications.
Final QC: Visual inspection for flash, voids, and surface defects; batch traceability via RFID tagging.
Yield Optimization: Process Engineers adjust parameters to maintain >98.5% first-pass yield for automotive-grade seals.

Suzhou Baoshida Commitment: Every EPDM O-ring is engineered to exceed industry standards through our 5+2+3 team’s 15+ years of precision manufacturing expertise. We guarantee ASTM D2000 compliance, chemical resistance, and dimensional accuracy for mission-critical applications across automotive, hydraulic, and industrial sectors.

---

Contact Our Engineering Team

Contact Suzhou Baoshida

Solve Your Sealing Challenges Today

Partner with Suzhou Baoshida’s specialized engineering team for precision EPDM O-ring solutions tailored to your industry-specific requirements.

Contact: Mr. Boyce
Email: [email protected]
Phone: +86 189 5571 6798

Engineering Excellence: 5+2+3 Team Structure

Our integrated engineering framework ensures end-to-end technical rigor, from material formulation to production scalability.

Role	Count	Key Responsibilities
Mould Engineers	5	Precision tooling design, mold validation, lifecycle management, and dimensional accuracy control (±0.05mm tolerance)
Formula Engineers	2	Material composition optimization, chemical resistance testing (ASTM D1141), compression set validation (ASTM D395), and longevity analysis under extreme conditions
Process Engineers	3	Manufacturing process optimization (ISO 9001), in-line quality control (AIAG standards), and production scalability for high-volume automotive/hydraulic applications

Our team adheres strictly to ASTM D2000 specifications, ensuring EPDM O-rings meet Shore A hardness (30–90), tensile strength (17 MPa), and environmental resistance requirements for automotive, hydraulic, and industrial machinery systems. All formulations undergo 200+ hours of accelerated aging tests to guarantee performance stability.

Act Now: Request a technical datasheet or schedule a consultation to optimize your sealing system’s reliability and lifecycle cost.

---
