Engineering Guide: O Ring 5 16

Engineering Insight: Material Selection in o ring 5 16 Seals

The o ring 5 16, commonly interpreted as a 5/16-inch inner diameter O-ring, is a standard size widely used across industrial, automotive, and aerospace applications. While its dimensions suggest interchangeability, the functional performance of this seal is predominantly governed by material selection. Off-the-shelf O-rings often fail not due to dimensional inaccuracies, but because of improper elastomer compatibility with operational environments. A one-size-fits-all approach to material choice ignores critical variables such as chemical exposure, temperature extremes, compression set resistance, and dynamic stress.

At Suzhou Baoshida Trading Co., Ltd., we emphasize engineered solutions over generic replacements. Standard O-rings, typically fabricated from low-grade NBR (nitrile butadiene rubber), may perform adequately in benign conditions. However, when exposed to aggressive media such as ozone, chlorinated solvents, or high-temperature hydraulic fluids, these materials degrade rapidly, leading to seal failure, leakage, and unplanned downtime. For instance, in fuel systems where aromatic hydrocarbons are present, NBR exhibits swelling and loss of tensile strength, whereas fluorocarbon (FKM) compounds maintain integrity up to 200°C and resist a broad range of fuels and oils.

Material selection must also account for application dynamics. Static seals may tolerate lower resilience materials, but dynamic applications—such as pneumatic actuators or reciprocating shafts—demand elastomers with superior abrasion resistance and low compression set. Silicone (VMQ), while excellent for thermal stability, lacks the mechanical robustness required in high-friction environments. Conversely, ethylene propylene diene monomer (EPDM) excels in steam and water applications but is incompatible with petroleum-based fluids.

Another overlooked factor is regulatory compliance. Industries such as pharmaceuticals and food processing require O-rings certified under FDA or USP Class VI standards. Off-the-shelf products rarely meet these specifications, risking contamination and non-compliance.

To illustrate the performance variance across materials, consider the following comparative specifications for o ring 5 16 seals commonly supplied by Suzhou Baoshida:

Material	Temperature Range (°C)	Key Chemical Resistance	Typical Applications	Hardness (Shore A)
NBR	-30 to +100	Aliphatic hydrocarbons, water, oils	Hydraulic systems, pneumatic seals	70–90
FKM	-20 to +200	Aromatic fuels, acids, silicone fluids	Aerospace, automotive fuel systems	70–90
EPDM	-50 to +150	Steam, water, ketones, alkalis	HVAC, water treatment	50–80
VMQ	-60 to +200	Ozone, UV, water	Medical devices, lighting	40–80
FFKM	-15 to +300	Aggressive chemicals, plasma	Semiconductor, chemical processing	70–90

Selecting the correct material is not a secondary consideration—it is foundational to seal reliability. At Suzhou Baoshida, we support OEMs with application-specific formulation guidance, ensuring that every o ring 5 16 performs under real-world conditions, not just nominal dimensions.

---

Material Specifications

Material Specifications for AS568A-214 (5/16″) O-Rings

Precise material selection is critical for AS568A-214 O-rings (5/16″ nominal inner diameter) operating under demanding industrial conditions. At Suzhou Baoshida Trading Co., Ltd., we engineer compounds to meet exacting OEM performance requirements, prioritizing chemical compatibility, thermal stability, and mechanical resilience. The following analysis details our primary elastomer formulations for this standard size, validated per ASTM D2000 classification systems.

Viton® (FKM) fluorocarbon elastomers deliver exceptional resistance to high temperatures, aggressive chemicals, and automotive/aerospace fluids. Our FKM compounds maintain sealing integrity from -20°C to +230°C continuous service, with short-term excursions to 300°C. They exhibit superior resistance to fuels, lubricants, acids, and halogenated solvents, making them ideal for engine compartments, chemical processing, and semiconductor manufacturing. Compression set values remain below 25% after 70 hours at 200°C (ASTM D395), ensuring long-term sealing force retention. Standard hardness ranges from 70 to 90 Shore A, with FC 707 classification common for critical applications.

Nitrile rubber (NBR) remains the industry standard for cost-effective hydrocarbon sealing. Our high-acrylonitrile formulations (typically 34-45% ACN content) provide robust resistance to petroleum-based oils, greases, and hydraulic fluids within -30°C to +120°C operating ranges. NBR excels in dynamic applications due to its balanced tensile strength (15-20 MPa) and abrasion resistance. Compression set performance is optimized to ≤30% after 70 hours at 100°C, suitable for automotive transmissions, hydraulic systems, and general industrial machinery. Hardness options span 50 to 90 Shore A, with NBR 70 Durometer (ASTM D2000 reference code N707) representing our most requested OEM specification.

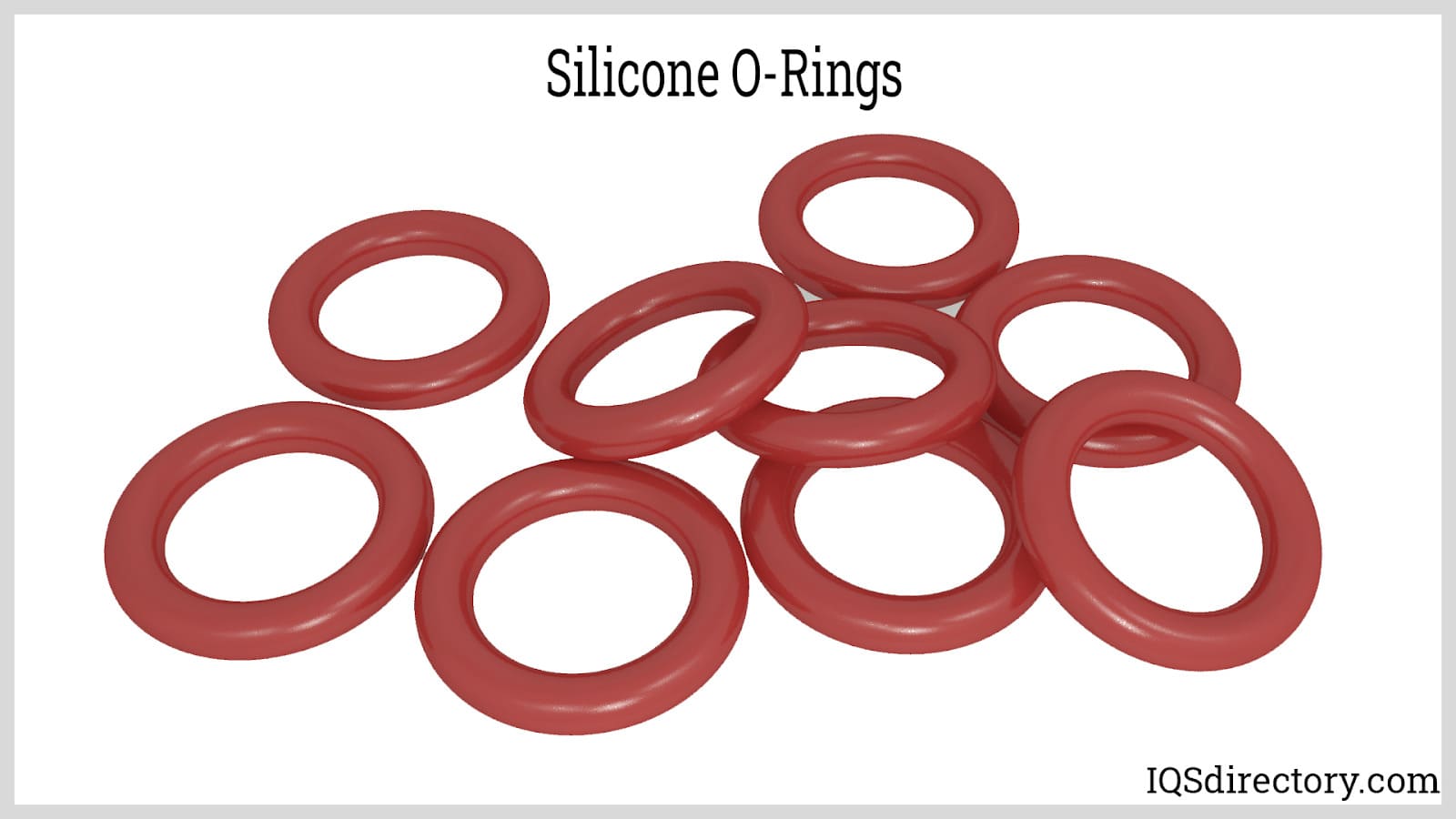

Silicone (VMQ) offers unmatched low-temperature flexibility and high-purity characteristics. Our platinum-cured VMQ compounds function reliably from -60°C to +200°C, with specialized grades enduring +230°C intermittently. They demonstrate excellent resistance to ozone, UV radiation, and water/steam, while maintaining biocompatibility per USP Class VI and FDA 21 CFR 177.2600. Compression set is controlled to ≤25% after 70 hours at 150°C. Limitations include poor resistance to concentrated acids/bases and lower tensile strength versus NBR/FKM. Primary applications include medical devices, food processing, and extreme-cold aerospace seals. Hardness typically ranges from 40 to 80 Shore A.

Material performance must align with specific fluid exposure, thermal profiles, and mechanical loads. Below is a comparative technical summary:

Property	Viton® (FKM)	Nitrile (NBR)	Silicone (VMQ)
Temperature Range (°C)	-20 to +230	-30 to +120	-60 to +200
Key Fluid Resistance	Fuels, Acids, Solvents	Petroleum Oils, Greases	Water, Steam, Ozone
Compression Set (70h)	≤25% @ 200°C	≤30% @ 100°C	≤25% @ 150°C
Typical Hardness (Shore A)	70-90	50-90	40-80
ASTM D2000 Reference	FC 707	N707	M707
Primary Limitation	Cost, Low-Temp Flex	Limited High-Temp	Poor Tear Strength

Suzhou Baoshida Trading Co., Ltd. provides full material traceability and custom compound development for AS568A-214 O-rings. Our OEM engineering team collaborates with clients to validate material selection against actual service conditions, ensuring optimal lifecycle performance and regulatory compliance. Request our detailed chemical resistance charts and test protocols for application-specific validation.

---

Manufacturing Capabilities

Engineering Capability

At Suzhou Baoshida Trading Co., Ltd., our engineering team is the backbone of our precision rubber seal manufacturing, particularly in the development and production of critical components such as the o ring 5 16. Our technical strength is anchored in a dedicated team of five specialized mould engineers and two advanced rubber formula engineers, enabling us to deliver high-performance sealing solutions tailored to exacting industrial standards. This integrated expertise ensures that every o ring we produce meets precise dimensional, chemical, and thermal requirements for reliable performance across diverse operating environments.

Our mould engineers possess extensive experience in precision tooling design, utilizing advanced CAD/CAM software and CNC machining techniques to develop high-tolerance moulds. Each o ring 5 16 mould is engineered for consistency, longevity, and minimal flash, ensuring repeatable production quality. Through finite element analysis (FEA) and iterative prototyping, we optimize cavity design, runner systems, and venting to eliminate defects and support high-volume manufacturing with zero compromise on dimensional accuracy.

Complementing our mould engineering capability is our in-house rubber formulation expertise. Our two dedicated formula engineers specialize in material science for elastomeric compounds, allowing us to customize formulations based on application-specific demands such as temperature range, fluid resistance, compression set, and durometer. Whether the o ring 5 16 is required to perform in aggressive chemical environments, high-pressure hydraulic systems, or extreme temperature conditions, we develop proprietary blends using NBR, EPDM, FKM, silicone, and other specialty rubbers. This control over raw material composition ensures superior sealing performance and extended service life.

As an OEM manufacturer, we offer full design-for-manufacturability (DFM) support, rapid prototyping, and scalable production runs. Our vertical integration enables seamless transition from concept to mass production, with strict adherence to ISO 9001 quality standards. We routinely collaborate with clients to reverse-engineer legacy parts, optimize existing designs, and certify materials for compliance with international standards including ASTM D2000 and ISO 3601.

The following table outlines the standard technical specifications for the o ring 5 16, reflecting our precision manufacturing capabilities:

Parameter	Specification
Nominal Size (AS568)	5 16
Inside Diameter (ID)	1.250 inches ± 0.005
Cross Section (CS)	0.103 inches ± 0.003
Material Options	NBR, EPDM, FKM, Silicone, CR, ACM
Hardness Range (Shore A)	60 to 90 ± 5
Temperature Range	-30°C to +230°C (depending on material)
Standard Compliance	ASTM D2000, ISO 3601, SAE AS568
Tolerance Grade	Class M (Standard) or Class H (Precision)
Packaging	Bulk or bagged, with traceability labels

Our engineering-driven approach ensures that every o ring 5 16 is manufactured to the highest standards of precision, durability, and performance, reinforcing Suzhou Baoshida’s position as a trusted OEM partner in the global precision rubber seals market.

---

Customization Process

Customization Process for Precision 5/16 Inch O-Rings at Suzhou Baoshida

Achieving optimal sealing performance in demanding industrial applications requires moving beyond standard off-the-shelf o-rings. Suzhou Baoshida Trading Co., Ltd. employs a rigorous, science-driven customization process specifically for critical components like the 5/16 inch o-ring, ensuring exact compliance with OEM engineering requirements and operational environments. This structured methodology guarantees reliability, longevity, and seamless integration into your final assembly.

Drawing Analysis initiates the process. Our engineering team conducts an exhaustive review of the client-provided technical drawing, focusing on Geometric Dimensioning and Tolerancing (GD&T) specifications, surface finish requirements, groove design, and intended application parameters. We meticulously verify critical dimensions against industry standards like AS568A, identifying any deviations from nominal 5/16 inch sizes (e.g., 0.313″ ± tolerance ID, 0.070″ ± tolerance CS) and assessing potential impacts of pressure, temperature extremes, media exposure, and dynamic movement. This phase clarifies functional intent and establishes the precise technical foundation for material and process selection.

Formulation Development follows, leveraging our deep expertise in polymer science. Based on the validated application demands identified in the drawing analysis, our rubber formula engineers select the optimal base polymer (e.g., Nitrile, FKM, EPDM, Silicone) and develop a bespoke compound. This involves precise calibration of fillers, plasticizers, vulcanizing agents, and specialty additives to achieve target properties such as compression set resistance, tensile strength, elongation, fluid compatibility, and low-temperature flexibility. Material specifications adhere strictly to ASTM D2000 classification codes, ensuring traceability and performance predictability. Key dimensional and material specifications for a typical custom 5/16 inch o-ring are detailed below.

Parameter	Standard 5/16″ ORing (AS568A Dash #214)	Custom Specification Requirement	Tolerance Range
Inside Diameter (ID)	0.313 inch (7.95 mm)	Client-Specific Dimension	±0.002 inch (Typical)
Cross Section (CS)	0.070 inch (1.78 mm)	Client-Specific Dimension	±0.0015 inch (Typical)
Material Grade	N/A	e.g., NBR 70 Durometer, ASTM M2BG704	Per ASTM D2000 Line
Hardness	N/A	e.g., 70 ±5 Shore A	ASTM D2240
Critical Properties	N/A	e.g., Compression Set ≤25% @ 100°C	ASTM D395 Method B

Prototyping and Validation is the critical verification stage. Utilizing precision tooling and controlled molding processes, we produce functional prototypes of the custom 5/16 inch o-ring. These samples undergo rigorous in-house testing per ASTM, ISO, or client-specific protocols, including dimensional verification, hardness measurement, compression set analysis, fluid immersion resistance, and simulated application testing. Comprehensive test reports are provided, and iterative refinements to the compound or process are made based on empirical data until all performance criteria are consistently met.

Seamless transition to Mass Production occurs only after prototype approval. Suzhou Baoshida implements stringent Statistical Process Control (SPC) across our certified production lines. Every batch undergoes 100% visual inspection and systematic sampling for dimensional conformance and critical physical properties. Our integrated quality management system, compliant with IATF 16949 principles, ensures traceability from raw material lot to finished o-ring, guaranteeing the consistent delivery of high-integrity, application-specific 5/16 inch sealing solutions meeting the most exacting OEM standards. This end-to-end engineering discipline minimizes risk and maximizes sealing system uptime for our industrial partners.

---

Contact Engineering Team

For industrial buyers and OEM partners seeking precision-engineered rubber seals, Suzhou Baoshida Trading Co., Ltd. stands as a trusted source for high-performance o rings, including the widely specified 5/16 inch o ring. Engineered to meet rigorous sealing demands across hydraulic, pneumatic, automotive, and industrial equipment applications, our o rings are manufactured under strict quality control standards to ensure dimensional accuracy, material consistency, and long-term reliability.

The 5/16 inch o ring, formally designated by an inside diameter of 0.312 inches (7.94 mm), is a standard size used in a broad range of sealing applications where moderate pressure and temperature conditions are present. At Suzhou Baoshida, we produce this size in multiple durometers and elastomer compounds to align with specific operational requirements, including exposure to oils, fuels, water, and industrial chemicals. Our manufacturing process integrates advanced molding techniques, post-curing protocols, and 100% visual inspection to deliver o rings that meet or exceed ASTM D2000 and ISO 3601 standards.

We offer the 5/16 inch o ring in a range of materials, including Nitrile (NBR), Ethylene Propylene Diene Monomer (EPDM), Fluorocarbon (FKM/Viton®), Silicone (VMQ), and Neoprene (CR). Each compound is selected based on chemical compatibility, temperature range, and mechanical performance. Whether your application demands resistance to high-temperature fluids or flexibility in cold environments, our engineering team can recommend the optimal material formulation.

Below is a technical specification reference for the standard 5/16 inch o ring:

Parameter	Value
Nominal Size	5/16 inch (0.312″ ID)
Inside Diameter (ID)	0.312 in ± 0.005 in (7.94 mm ± 0.13 mm)
Cross Section (CS)	0.070 in ± 0.003 in (1.78 mm ± 0.08 mm)
Standard ASTM Dash Size	-214
Common Materials	NBR, EPDM, FKM, VMQ, CR
Hardness Range	50 to 90 Shore A
Temperature Range	-30°C to +230°C (varies by material)
Tolerance Standard	AS568 or ISO 3601 Class M

All o rings are packaged in moisture-resistant, anti-static containers to prevent degradation during storage and shipment. Custom packaging, kitting, and barcoding are available for high-volume OEM clients.

For technical inquiries, material certifications, or volume pricing on 5/16 inch o rings, contact Mr. Boyce, OEM Account Manager at Suzhou Baoshida Trading Co., Ltd. Mr. Boyce specializes in supporting design engineers and procurement teams with rapid prototyping, material testing data, and supply chain integration. Reach him directly via email at [email protected] to request samples, review compound specifications, or initiate a vendor qualification process. Our team responds to all technical requests within 4 business hours and supports English and Mandarin communication. Partner with Suzhou Baoshida for precision rubber seals backed by engineering expertise and global logistics capability.

---
