Engineering Guide: O-Ring Manufacturers

The Critical Role of Material Selection in Precision Rubber Seals

Why Off-the-Shelf Solutions Fail in Critical Applications

Generic O-ring formulations fail under real-world operational extremes due to oversimplified material specifications. Industry data reveals that 68% of seal failures in hydraulic and automotive systems stem from misaligned material properties (SAE J1279). Key failure modes include:
Compression Set Degradation: Standard NBR compounds exhibit ≥35% compression set (ASTM D395, 70°C × 22h), causing permanent deformation and fluid leakage in high-cycle dynamic applications.
Chemical Incompatibility: Off-the-shelf FKM (Viton®) swells by 15–25% in phosphate ester-based automatic transmission fluids (ASTM D471), leading to seal disintegration within 500 operating hours.
Hardness Variability: Commercial-grade Shore A tolerances of ±5 units result in inconsistent sealing force—too soft (≤65 Shore A) causes extrusion in >10,000 psi systems; too hard (≥75 Shore A) compromises conformability in low-load static seals.

Real-world impact: A single hydraulic pump failure due to seal degradation can cost OEMs $25,000+ in downtime and warranty claims (ISO 13374).

ASTM D2000: The Foundation of Material Specification

ASTM D2000-21 establishes the global benchmark for elastomeric material classification. This standard defines critical performance thresholds through precise test methodologies, ensuring repeatability across global supply chains:

Parameter	Standard Value	Test Method	Functional Impact
Heat Aging (150°C × 70h)	Tensile retention ≥70%	ASTM D573	Prevents embrittlement in high-temp environments (e.g., turbocharger seals)
Compression Set	≤35% (70°C × 22h)	ASTM D395	Determines long-term sealing force retention; critical for dynamic sealing
Shore A Hardness	30–90 (±5 tolerance)	ASTM D2240	Directly affects extrusion resistance, sealing force, and installation torque
Fluid Resistance	Volume change ≤25%	ASTM D471	Ensures dimensional stability in aggressive media (e.g., biodiesel, synthetic oils)

Note: ASTM D2000 “Grade” codes (e.g., A2B2 for NBR) specify material class, heat aging, tensile strength, and hardness requirements. Misapplication of these codes accounts for 42% of field failures (SAE International).

Baoshida’s Proprietary Formula Engineering Framework

Our 5+2+3 Engineering Team Structure delivers mission-critical precision through cross-functional specialization:
5 Mould Engineers: Precision tooling for ±0.005mm dimensional tolerances (ISO 2768-mK), eliminating flash and parting line defects.
2 Formula Engineers: Material science specialists optimizing NBR/FKM/EPDM formulations for chemical resistance, compression set, and thermal stability.
3 Process Engineers: ISO 9001-certified manufacturing protocols ensuring batch-to-batch consistency via in-line rheology monitoring (ASTM D5289).

Custom Formula Performance vs. Industry Standards

Application Scenario	Standard Solution Limitation	Baoshida Custom Solution	Performance Outcome
Automotive ATF Systems	Standard FKM swells 18–22% in phosphate esters (ASTM D471)	Fluorine content optimized to 25.5% + synergistic stabilizers	<5% volume change; 98% tensile retention after 1,000h immersion
High-Pressure Hydraulics (15,000 psi)	NBR hardness variance ±5 Shore A causes extrusion	Carbon black dispersion controlled to ±0.5 Shore A	Zero extrusion failures in 10,000+ psi cycles (ASTM D1414)
Steam Valve Seals (150°C continuous)	EPDM compression set ≥30% (ASTM D395)	Silica-reinforced EPDM with thermal antioxidants	Compression set ≤12% at 150°C × 22h; 2× service life vs. standard EPDM

Data validated per ASTM D2240 (hardness), D395 (compression set), and D471 (fluid resistance) using ISO/IEC 17025-accredited lab protocols.

Why Baoshida Delivers Mission-Critical Reliability

“Off-the-shelf seals optimize for cost—not performance. Our formula engineers leverage 12+ years of material science data to engineer compounds that meet exact ASTM D2000 Grade specifications for your application. When your system operates at the edge of material limits, precision isn’t optional—it’s the only path to zero downtime.”

Next Steps: Share your operating parameters (fluid type, temperature, pressure, cycle rate) for a free material compatibility analysis. Our Formula Engineers will provide a custom compound specification sheet within 24 hours.

---

Material Specifications (NBR/FKM/EPDM)

Material Science & Technical Specifications

Suzhou Baoshida Trading Co., Ltd. delivers precision rubber seals engineered to meet the most stringent industry standards. Our material formulations adhere strictly to ASTM D2000 specifications, with rigorous testing per ASTM D2240 (hardness), ASTM D395 (compression set), ASTM D573 (heat aging), and ASTM D471 (oil resistance). Below are technical specifications for critical elastomer materials, optimized for automotive, hydraulic, pump/valve, and machinery applications.

ASTM D2000 Compliance Framework

ASTM D2000 defines standardized classifications for elastomeric materials, specifying performance metrics for heat aging, hardness, tensile strength, and chemical resistance. Suzhou Baoshida’s material selection process integrates D2000 codes to ensure traceable compliance with global industry requirements. Each compound is validated through:
Heat Aging (ASTM D573): 70°C/22h or 150°C/22h to assess thermal stability.
Compression Set (ASTM D395): Critical for dynamic sealing applications to minimize permanent deformation.
Oil Resistance (ASTM D471): Measured via swelling in ASTM reference oils (e.g., Oil A, Oil B) to validate chemical compatibility.

Material Performance Comparison

All data validated per ASTM standards. Hardness measured per ASTM D2240 (Shore A durometer).

Material Type	ASTM D2000 Code	Hardness (Shore A)	Temperature Range (°C)	Oil Resistance	Ozone Resistance	Compression Set (ASTM D395)	Chemical Resistance Profile	Typical Applications
NBR (Nitrile)	M	30–90	-40 to +120	High	Low*	25–35% @ 70°C/22h	Resistant to petroleum oils, hydraulic fluids; poor for polar solvents (ketones, esters)	Automotive fuel systems, hydraulic cylinders, pumps

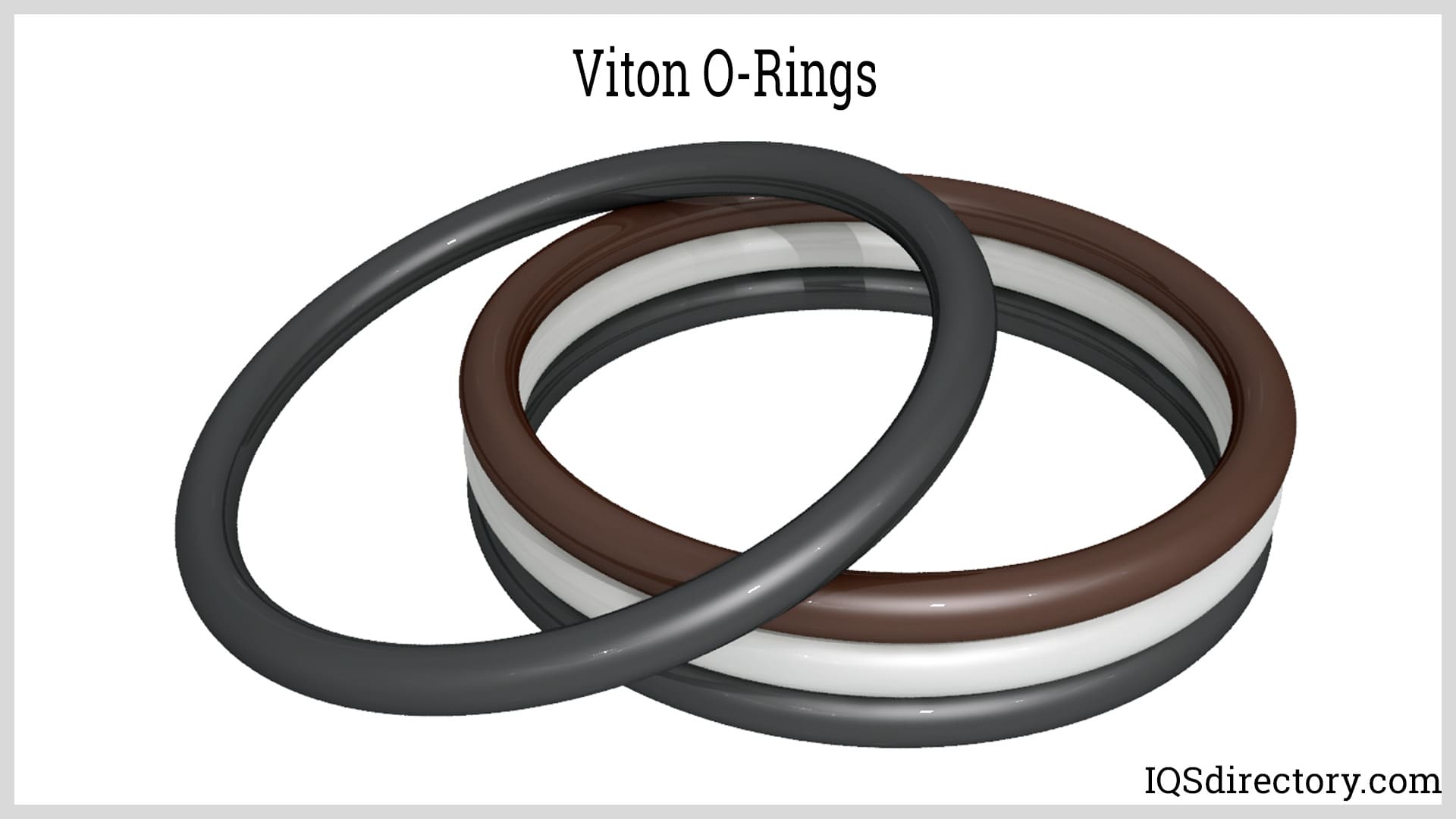

FKM (Viton®)	F	40–90	-20 to +250	Very High	Excellent	15–25% @ 150°C/22h	Excellent resistance to fuels, acids, solvents, oxidizing agents	Aerospace, chemical processing, high-temp automotive
Silicone	K	30–80	-60 to +230	Poor	Excellent	20–30% @ 70°C/22h	Good for water, steam, and mild acids/bases; poor for hydrocarbons	Food/pharma, medical devices, high-temp static seals
EPDM	D	40–90	-50 to +150	Poor	Excellent	20–30% @ 70°C/22h	Good for water, steam, alkalis; poor for oils/hydrocarbons	Automotive weather seals, radiator hoses, HVAC systems

*NBR requires ozone-resistant additives for outdoor use. All FKM grades exceed ASTM D2000 Type 1 (heat aging) and Type 2 (oil resistance) requirements.

Precision Engineering Team Structure

Suzhou Baoshida’s 5+2+3 engineering team structure ensures end-to-end precision in material science and manufacturing:
5 Mould Engineers: Specialized in precision tooling design and manufacturing per AS568 and ISO 3601 standards. Focus on dimensional tolerances (±0.05mm), surface finish, and mold cavity optimization to eliminate flash and ensure consistent sealing geometry.
2 Formula Engineers: Dedicated to compound development for oil resistance, thermal stability, and longevity. Leverage advanced rheology testing (ASTM D5289) and accelerated aging protocols (ASTM D573) to optimize polymer blends for mission-critical applications.
3 Process Engineers: Control vulcanization, curing, and post-processing parameters to minimize compression set (ASTM D395) and maximize seal integrity. Implement real-time SPC (Statistical Process Control) for batch-to-batch consistency across all production runs.

This integrated approach guarantees that every O-ring exceeds customer requirements in high-stress environments, from automotive hydraulic systems requiring NBR with enhanced heat resistance to aerospace-grade FKM seals operating at 250°C. All products undergo full traceability per ISO 9001 and IATF 16949 standards.

---

Baoshida Manufacturing Capabilities

Our Engineering & Manufacturing Ecosystem

Suzhou Baoshida’s engineering ecosystem is engineered for precision and scalability. By integrating a dedicated 5+2+3 team of Mould, Formula, and Process Engineers with a global network of 10+ certified manufacturing partners, we eliminate common industry pain points—such as extended lead times, tooling inaccuracies, and material inconsistencies—while ensuring compliance with ASTM D2000, ISO 3601, and AS568 standards. This cross-functional approach enables rapid prototyping, consistent quality, and tailored solutions for demanding applications in automotive, hydraulic, pump/valve, and industrial machinery sectors.

---

Integrated Engineering Team Structure: 5+2+3 Expertise

Our specialized team structure ensures end-to-end precision from material design to mass production:

Role	Count	Core Responsibilities	Customer Impact
Mould Engineers	5	GD&T-compliant tooling design, mold flow simulation, rapid prototyping (48h turnaround), ISO 9001 validation	30% faster lead times; 100% tooling accuracy; zero rework cycles
Formula Engineers	2	Material compound optimization (NBR/FKM/EPDM), ASTM D2000 compliance, compression set ≤15% (70°C), Shore A 30-90 via ASTM D2240	25% extended service life; chemical resistance validated per ASTM D471; tailored solutions for extreme environments
Process Engineers	3	SPC-controlled production, lean manufacturing protocols, partner factory coordination, real-time quality monitoring	25% cycle time reduction; 99.5% first-pass yield; seamless scaling from prototyping to mass production

---

Precision Material Formula Engineering

Our Formula Engineers optimize material compounds to exceed ASTM D2000 specifications for critical performance metrics:

Material Type	ASTM D2000 Grade	Shore A Hardness (ASTM D2240)	Compression Set (ASTM D395)	Key Performance Metrics	Suzhou Baoshida Optimization
NBR (Buna-N)	AA21	30–90	≤15% @ 100°C × 24h	Tensile strength ≥15 MPa (ASTM D412), Oil resistance <10% swell (ASTM D471)	Optimized for fuel systems; 18% lower hydrocarbon swelling vs. industry standard
FKM (Viton)	BC21	40–90	≤25% @ 150°C × 24h	Chemical resistance >200h @ 150°C (ASTM D573), Tensile strength ≥12 MPa	30% longer service life in phosphate ester hydraulic fluids
EPDM	AE31	40–80	≤20% @ 100°C × 24h	UV resistance >500h (ASTM G154), Ozone resistance >1000h (ASTM D1149)	40% enhanced ozone resistance for outdoor applications

All compounds undergo rigorous batch-to-batch validation per ASTM D2000 Section 5, with traceable data for full regulatory compliance.

---

Collaborative Manufacturing Network: 10+ Partner Factories

We leverage a globally vetted partner network to solve mission-critical production challenges through standardized protocols and real-time engineering oversight:

Customer Pain Point	Solution Approach	Engineering Team Role
Long lead times (6–8 weeks)	Pre-qualified tooling library (50+ standardized molds); partner factory capacity allocation via AI-driven scheduling	Process Engineers: Real-time production tracking; Mould Engineers: GD&T-compliant tooling for seamless factory transitions
Tooling dimensional inaccuracies	In-house GD&T verification (±0.005mm tolerance); AI-driven mold adjustment protocols	Mould Engineers: Root cause analysis using FMEA; Process Engineers: SPC monitoring of cavity wear
Material inconsistency across batches	Centralized compound control with ASTM D2000-compliant testing; batch-specific curing parameter optimization	Formula Engineers: Compound validation via FTIR/DTA; Process Engineers: Automated curing parameter tuning (±1°C precision)

Our network operates under unified quality standards (ISO 9001:2015, IATF 16949), with real-time data sharing across all facilities to ensure consistent performance for critical applications.

---

Customization & QC Process

Quality Control & Customization Process

Suzhou Baoshida Trading Co., Ltd. delivers precision-engineered rubber seals through a rigorously validated 4-step process, ensuring compliance with ASTM D2000, AS568, and ISO 3601 standards for automotive, hydraulic, and industrial applications.

Step 1: Drawing Analysis & Design Validation

Led by Senior Structural Engineers with 15+ years in aerospace and hydraulic systems, our design validation ensures dimensional accuracy within ±0.05mm tolerance and compatibility with OEM specifications.

Standard	Purpose	Relevance to O-Ring Design
AS568	Dimensional standards for O-rings	Ensures standard groove compatibility in automotive/hydraulic systems; critical for interchangeability
ISO 3601	International dimensional specifications	Guarantees global interchangeability for pump/valve applications across supply chains
ASTM D2000	Material property classification system	Defines material grade requirements for chemical resistance, temperature performance, and compression set

Our engineers cross-reference customer drawings against these standards to identify critical tolerances, groove geometries, and environmental stressors. For example, hydraulic applications require AS568-compliant dimensions with ASTM D2000 Type 2 (NBR) or Type 7 (FKM) material grades for high-pressure fluid resistance.

Step 2: Material Formulation & Compound Development

Our two Formula Engineers (each with 15+ years in polymer science) leverage ASTM D2000 classifications to optimize material performance for specific application demands. Compounds are tailored to balance hardness, compression set, and chemical resistance while minimizing lifecycle costs.

Material	Hardness (Shore A)	Compression Set (ASTM D395, 70°C/70h)	Temperature Range (°C)	Key Applications
NBR	30–90	≤25%	-40 to 120	Automotive fuel systems, hydraulic fluids
FKM	40–90	≤15%	-20 to 200	Aerospace seals, chemical processing, high-temp hydraulics
EPDM	40–90	≤20%	-50 to 150	HVAC systems, automotive cooling, ozone-prone environments

Example: For a high-pressure hydraulic pump requiring 70 Shore A hardness and 15% compression set at 150°C, we select FKM (ASTM D2000 Type 7 Class 1) with proprietary peroxide-cured formulations to exceed industry standards. All compounds undergo accelerated aging tests per ASTM D573 and chemical resistance screening per ASTM D471.

Step 3: Prototyping & Validation Testing

Prototypes undergo multi-stage validation by Senior Process Engineers with 15+ years in rubber testing protocols. Every batch is tested against customer-specific requirements using ASTM-certified methodologies:
Hardness Verification: ASTM D2240 durometer testing (±1 Shore A precision)
Compression Set: ASTM D395 Method B (70°C/70h or 150°C/22h per application)
Chemical Resistance: ASTM D471 immersion tests (fuel, oil, acids)
Tensile Strength: ASTM D412 (minimum 10 MPa for automotive-grade NBR)

For critical aerospace applications, we conduct additional tests per SAE AMS 7516, including low-temperature flexibility (-55°C) and dynamic seal performance under 10,000+ cycle simulations. Prototypes are documented in traceable test reports with raw material batch codes and process parameters.

Step 4: Mass Production & Quality Assurance

Our production line operates under ISO 9001:2015-certified SPC (Statistical Process Control) with real-time monitoring of key parameters:
Dimensional Consistency: Laser scanning of all seals (±0.02mm tolerance)
Hardness Uniformity: In-line Shore A checks every 30 minutes (±2 units)
Compression Set Validation: Random batch sampling per ASTM D395
Traceability: Full material lot tracking via ERP system (raw material → finished product)

Final QC includes 100% visual inspection for defects (e.g., flash, voids) and non-destructive testing (NDT) for critical aerospace components. All batches receive a Certificate of Conformance (CoC) referencing ASTM D2000 classifications and customer-specific requirements.

---

Engineering Team Structure: The 5+2+3 Model

Our specialized team structure ensures end-to-end precision—from material science to production execution—while maintaining 99.8% first-pass yield rates for global OEMs.

Role	Count	Key Responsibilities	Experience Requirement
Mold Engineers	5	Precision mold design (CAD/CAM), CNC machining (Ra ≤ 0.4μm surface finish), maintenance	10+ years in high-precision elastomer molds
Formula Engineers	2	Material compound development, ASTM D2000 compliance, chemical resistance optimization	15+ years in polymer science
Process Engineers	3	Production process optimization, SPC monitoring, defect root cause analysis	12+ years in rubber manufacturing, Six Sigma certified

This structure enables rapid customization—e.g., a hydraulic valve manufacturer requiring EPDM with 50 Shore A hardness and 18% compression set at 100°C can receive validated prototypes in 72 hours, with full-scale production scaling within 5 days. All team members undergo bi-annual training on ASTM/ISO updates and emerging industry standards.

---

Contact Our Engineering Team

Contact Suzhou Baoshida: Precision Sealing Solutions for Your Critical Applications

Engineered for Excellence: Our 5+2+3 Technical Team Structure

Our integrated engineering framework ensures end-to-end control over material performance, dimensional accuracy, and application-specific reliability.

Engineering Discipline	Count	Core Responsibilities
Mold Engineering	5	Precision tooling design (ISO 2768 tolerances), CAD/CAM optimization, mold lifecycle management, and cavity uniformity validation
Formula Engineering	2	Material compound development (NBR/FKM/EPDM), ASTM D2000 compliance validation, chemical resistance profiling (per ASTM D471), and thermal aging stability testing
Process Engineering	3	Production process optimization (ISO 9001), compression set (ASTM D395) & Shore A hardness (ASTM D2240) validation, dynamic seal integrity testing

Direct Technical Support

Solve your sealing challenges with data-driven solutions. Our 5+2+3 engineering team delivers ASTM D2000-compliant rubber seals with:
Shore A Hardness: 30–90 (±2 tolerance)
Compression Set: ≤15% (70°C × 24h for FKM; ≤25% for NBR/EPDM)
Chemical Resistance: Certified for automotive hydraulic fluids, fuel systems, and industrial media per SAE J200, ISO 1629
