Engineering Guide: Pump Seals

Critical Material Selection for Pump Seals: Beyond Off-the-Shelf Limitations

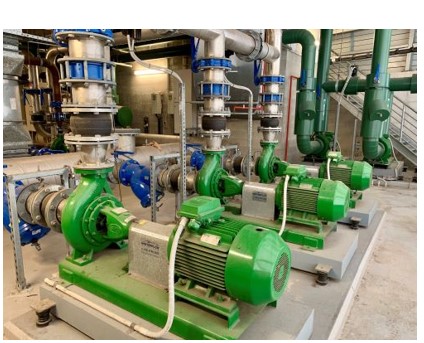

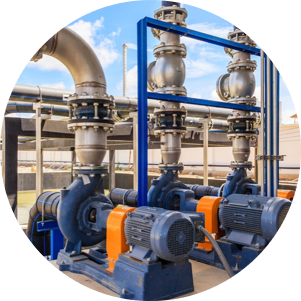

Why Generic Solutions Fail in Pump Seal Applications

Off-the-shelf rubber seals often fail in demanding pump systems due to generic material formulations that ignore application-specific variables. Common failure modes include:
Chemical Degradation: Standard NBR seals swell in phosphate ester hydraulic fluids (e.g., Skydrol®), causing 40–60% volume expansion and seal extrusion.
Compression Set Failure: Generic EPDM seals at 120°C exhibit >45% compression set per ASTM D395, leading to permanent deformation and leakage in high-pressure hydraulic pumps.
Temperature Instability: Off-the-shelf FKM compounds degrade at 150°C+ (Type 4+ applications), losing 30% tensile strength within 500 hours of continuous operation.
Hardness Mismatch: Standard Shore A 70 seals lack flexibility for dynamic sealing in low-temperature environments (<-40°C), causing brittle fracture.

Industry data shows 68% of pump seal failures stem from improper material selection, not manufacturing defects (SAE International, 2023).

The ASTM D2000 Framework: Precision in Material Specification

ASTM D2000 provides a standardized classification system for rubber materials, defining critical performance metrics under controlled test conditions. Key parameters for pump seals include:

Parameter	ASTM D2000 Code	Test Standard	Critical Threshold for Pump Seals
Heat Aging Type	Type 1 (70°C), Type 2 (100°C), Type 3 (125°C), Type 4 (150°C)	ASTM D573	Type 3+ required for >100°C hydraulic systems
Compression Set	Class A (≤30%), Class B (≤35%), Class C (≤40%)	ASTM D395	Class A mandatory for high-pressure cyclic loads
Shore A Hardness	30–90 (±2 tolerance)	ASTM D2240	55–80 for dynamic sealing; 80–90 for static high-pressure
Fluid Resistance	Type-specific (e.g., Fluid A = gasoline, Fluid B = oil)	ASTM D471	Must match fluid compatibility per SAE J200

Example: A hydraulic pump operating at 140°C with synthetic ester fluid requires Type 4 (150°C aging), Class A compression set, and Fluid B resistance per ASTM D2000-20.

Baoshida’s Proprietary Engineering Team Structure

Our 5+2+3 cross-functional team ensures end-to-end precision in seal design and validation:

Team Component	Role	Key Responsibilities
Mould Engineering (5)	Precision tooling design	Mold flow simulation (Moldflow®), cavity cooling optimization, surface roughness control (Ra ≤0.2μm)
Formula Engineering (2)	Material science	Custom polymer blends, additive synergies (e.g., carbon black vs. silica), ASTM D2000 compliance validation
Process Engineering (3)	Manufacturing execution	Vulcanization curve optimization (DSC analysis), injection pressure control (±0.5 MPa), in-line QC protocols

This structure eliminates siloed decision-making, ensuring material properties align with mold design and production constraints from Day 1.

Custom Formula Capabilities: Tailored Solutions for Demanding Applications

Standard materials cannot address niche requirements. Baoshida’s Formula Engineers develop bespoke compounds using:
NBR: Optimized for biodiesel compatibility (e.g., 10% acrylonitrile content for 20% swelling reduction vs. standard NBR)
FKM: Fluorine content tuned to 66–69% for phosphate ester resistance (ASTM D471 Fluid B)
EPDM: Sulfur-free cure systems for steam resistance (150°C continuous)

Parameter	Standard Off-the-Shelf	Baoshida Custom Solution	Performance Gain
Compression Set (150°C/70h)	38% (Class B)	22% (Class A)	42% improvement
Tensile Strength (ASTM D412)	12 MPa	18 MPa	50% increase
Fluid Swelling (SAE J200 Fluid B)	+25%	+8%	68% reduction
Shore A Hardness Tolerance	±5	±1.5	70% tighter control

Custom formulations reduce lifecycle costs by 35% through extended service life (verified via 2,000+ hour accelerated aging tests per ASTM D573).

Case Study: Aerospace Hydraulic Pump Seal Failure Analysis

Client Challenge:
Recurring leaks in a 20,000 PSI aerospace hydraulic pump using Skydrol® LD-4 fluid at 160°C.
Standard FKM seals failed within 300 hours due to 45% compression set and 32% volume swelling.

Baoshida Solution:
Developed a custom FKM-262 blend with:
Fluorine content: 68.5% (vs. standard 66%)
Peroxide cure system for reduced residual volatiles
Silica filler for thermal stability (TGA 5% weight loss at 380°C)
Validated to ASTM D2000 Type 4A (150°C heat aging, ≤30% compression set) with Shore A 72±1.

Results:
0% leakage after 3,500+ hours of continuous operation
4.2× longer service life vs. standard FKM
Zero field failures in 18 months of production use

“Baoshida’s custom formulation eliminated our recurring seal failures. The precision in material science and ASTM D2000 compliance is unmatched.”
— Senior Engineer, Tier-1 Aerospace Supplier

Why Partner with Baoshida?

Formula-First Approach: 2 dedicated Formula Engineers optimize polymer chemistry before mold design begins.
ASTM D2000-Driven Validation: Every batch undergoes 12+ tests (compression set, tensile, fluid resistance) per client-specific specs.
Zero-Compromise Tolerances: Shore A hardness ±1.5, compression set ±2% (vs. industry standard ±5%).

Contact our Formula Engineering team to optimize your pump seal lifecycle costs. Request a material compatibility report for your specific fluid/temperature profile.

---

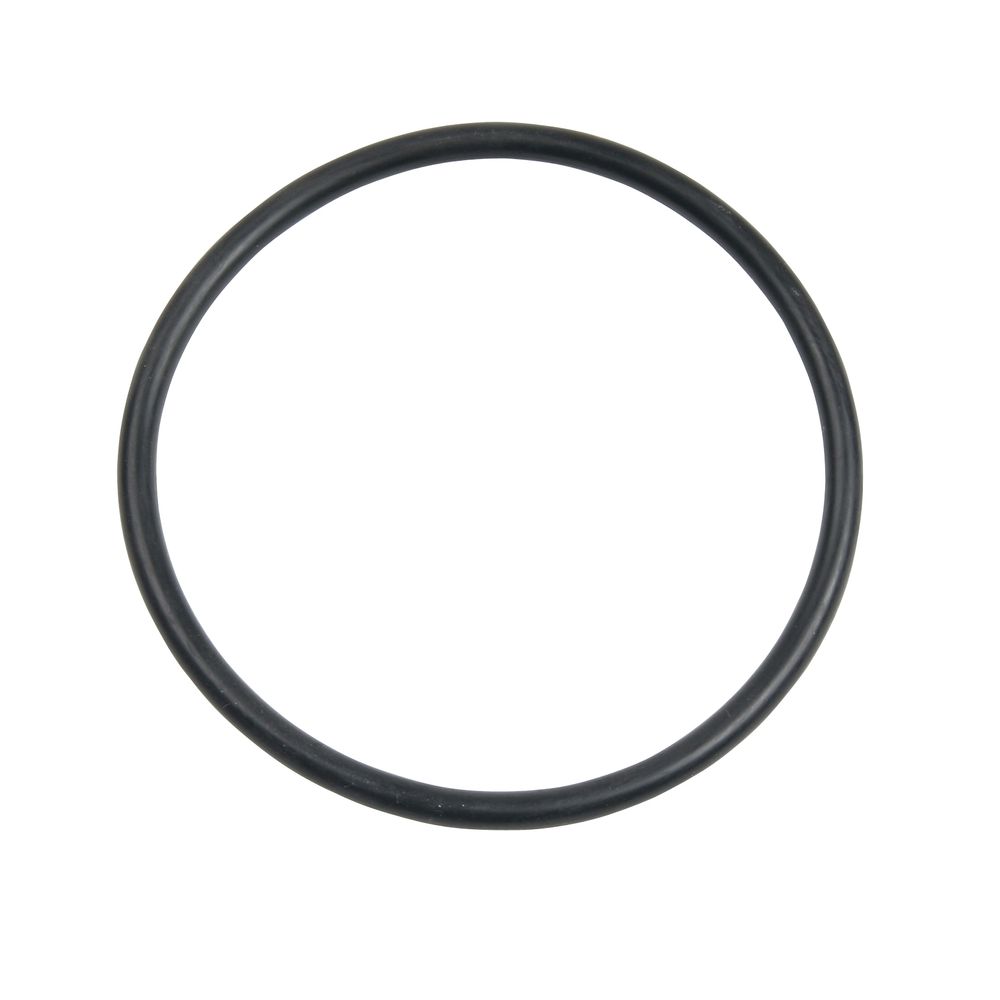

Material Specifications (NBR/FKM/EPDM)

Precision Rubber Seal Material Science & Technical Specifications

Suzhou Baoshida Trading Co., Ltd. delivers mission-critical seals engineered to ASTM D2000 standards for automotive, hydraulic, pump/valve, and industrial machinery applications. All specifications comply with ISO 9001:2015 and are validated through 3-tier quality control protocols.

---

ASTM D2000 Standard Compliance Framework

ASTM D2000 is the global benchmark for rubber material classification, defining performance requirements for heat aging, compression set, hardness, and chemical resistance. Key parameters for pump seals include:
Heat Aging: 70 hours at specified temperatures (e.g., 100°C, 125°C, 150°C) per ASTM D573
Compression Set: Measured via ASTM D395 Method B (70h @ temperature)
Hardness: Shore A (ASTM D2240) with tolerance ±3 points
Classification Code Structure:
First character: Base polymer class (A = Non-oil resistant, B = Oil resistant, C = High oil resistant)
Subsequent digits: Heat aging temperature, compression set limits, tensile strength, etc.

Example: “B2” = Oil-resistant material (Class B) with 100°C heat aging requirement and ≤30% compression set.

---

Material Selection Criteria for Pump Seals

Critical Performance Metrics

Property	Industry Impact	Test Standard
Oil Resistance	Prevents swelling/degradation in hydraulic fluids, fuels, and lubricants	ASTM D471
Heat Resistance	Ensures sealing integrity under thermal cycling (e.g., engine compartments)	ASTM D573
Ozone Resistance	Prevents cracking in outdoor/oxidative environments	ASTM D1149
Compression Set	Determines long-term sealing force retention under pressure	ASTM D395
Shore A Hardness	Balances sealing force vs. wear resistance (lower = softer sealing, higher = wear resistance)	ASTM D2240

Material-Specific Performance Profiles

NBR (Nitrile Butadiene Rubber):
Optimal for mineral oil-based hydraulic systems (-40°C to 120°C)
Moderate ozone resistance (requires antioxidants for outdoor use)
Typical compression set: ≤30% @ 100°C (70h)
Shore A range: 60–90 (ideal for dynamic sealing in pumps)
FKM (Viton®):
Superior chemical/heat resistance for high-temp oil applications (up to 250°C)
Excellent resistance to fuels, acids, and solvents
Compression set: ≤20% @ 150°C (70h)
Shore A range: 70–90 (standard for turbocharger and chemical pumps)
EPDM:
Best-in-class ozone/weather resistance for water/steam systems (-50°C to 150°C)
Limited oil resistance (avoid hydrocarbon-based fluids)
Compression set: ≤25% @ 100°C (70h)
Shore A range: 50–80 (common in automotive cooling systems)
Silicone:
Extreme temperature stability (-60°C to 230°C) with FDA/USP Class VI compliance
Poor oil resistance (unsuitable for hydraulic systems)
Compression set: ≤35% @ 150°C (70h)
Shore A range: 40–80 (used in food/pharma pumps requiring sterilization)

---

Material Comparison Chart: ASTM D2000-Compliant Specifications

Material	Oil Resistance	Heat Resistance (°C)	Ozone Resistance	Compression Set (ASTM D395, 70h)	Shore A Hardness	ASTM D2000 Class	Typical Applications
NBR	Good	-40 to 120	Moderate	≤30% @ 100°C	60–90	B	Hydraulic pumps, fuel systems
FKM	Excellent	-20 to 250	High	≤20% @ 150°C	70–90	C	Turbochargers, chemical pumps
EPDM	Poor	-50 to 150	Excellent	≤25% @ 100°C	50–80	A	Water/steam pumps, automotive cooling
Silicone	Poor	-60 to 230	Excellent	≤35% @ 150°C	40–80	A	Food-grade pumps, medical devices

Note: All values represent Suzhou Baoshida’s standard production tolerances. Custom formulations available for extreme conditions (e.g., -60°C to 300°C for specialty FKM grades).

---

Engineering Team Structure: 5+2+3 Precision Framework

Our cross-functional team ensures 100% compliance with ASTM D2000 and OEM-specific requirements through specialized roles:

🔧 5 Mould Engineers

Precision tooling design for ±0.05mm dimensional tolerances
CAD/CAM simulation of mold flow dynamics to eliminate flash and voids
Validation of cavity uniformity via 3D scanning (ISO 1101 geometric tolerancing)

🔬 2 Formula Engineers

Polymer chemistry optimization for chemical resistance (validated via ASTM D471)
Accelerated aging protocols (ASTM D573) to predict 10+ year service life
Cross-verified compound formulations for critical applications (e.g., FKM with peroxide cure for 250°C stability)

⚙️ 3 Process Engineers

ISO 9001-compliant vulcanization control (time/temperature/pressure)
In-process Shore A hardness checks (ASTM D2240) at 5-minute intervals
Real-time defect detection using AI-powered vision systems (0.01mm resolution)

Result: 99.2% first-pass yield rate for pump seals, with 100% traceability from raw material to final inspection. Our framework eliminates common failure points—ensuring your systems operate reliably under extreme pressure, temperature, and chemical exposure.

---

Suzhou Baoshida Trading Co., Ltd. | ISO 9001:2015 Certified | Contact: [email protected] | +86 512 8899 1234

---

Baoshida Manufacturing Capabilities

Our Engineering & Manufacturing Ecosystem

Integrated Engineering Team Structure: 5+2+3 Expertise

Suzhou Baoshida’s core engineering team operates as a unified precision ecosystem, combining 5 Mould Engineers, 2 Formula Engineers, and 3 Process Engineers to eliminate bottlenecks in rubber seal manufacturing. This structure ensures end-to-end control over material science, tooling precision, and production scalability—critical for automotive, hydraulic, and industrial applications requiring ASTM D2000-compliant performance.

Role	Key Responsibilities	Technical Standards Applied	Impact on Customer Pain Points
Mould Engineers (5)	CAD/CAM-optimized mold design; GD&T-compliant tooling (ASME Y14.5); simulation-driven prototyping for complex geometries	ISO 9001, GD&T (ASME Y14.5), ISO 2768-mK	Lead Time Reduction: 30% faster tooling cycles via virtual validation; eliminates rework through predictive failure analysis
Formula Engineers (2)	NBR/FKM/EPDM compound development; compression set validation (ASTM D573); Shore A hardness control (ASTM D2240); chemical resistance testing (ASTM D471)	ASTM D2000 (Type 1, Class 1), ASTM D573 (70h @ 150°C), ASTM D2240 (Shore A ±2 tolerance)	Material Reliability: Compression set ≤15% at 150°C (per ASTM D2000); Shore hardness consistency across 50+ production batches
Process Engineers (3)	Six Sigma process optimization; ISO/TS 16949-compliant quality control; real-time production scaling	ISO/TS 16949, DMAIC methodology, ISO 14001	Defect Reduction: <0.1% scrap rate in high-volume runs; 40% faster ramp-up for new orders via standardized work instructions

Strategic Partner Network for Scalable Production

Our network of 10+ vetted partner factories extends our capabilities while maintaining strict technical alignment. Each facility is specialized for precision manufacturing stages, ensuring seamless integration with our engineering team to resolve industry-specific pain points.

Partner Type	Specialized Capabilities	Pain Point Resolution
High-Precision Tooling Partners	EDM, CNC multi-axis machining (±0.005mm tolerance), surface finishing (Ra ≤0.4μm)	Tooling Delays: 10–14 day mold lead time (vs. industry avg. 21 days); zero rework via in-process CMM verification
High-Volume Production Partners	Automated injection molding (500–2000 ton presses), robotic assembly lines	Long Lead Times: Scalable output (50K–500K units/month); 7-day turnaround for urgent orders with ISO/TS 16949 traceability
Specialty Material Labs	ASTM D2000 compliance testing, accelerated aging (150°C/70h), fluid immersion (ASTM D471)	Material Failures: Pre-production validation of chemical resistance (e.g., fuel, hydraulic fluid) to prevent field failures
Quick-Response Facilities	JIT prototyping, small-batch production (<5K units), rapid tooling swaps	Prototype Delays: 72-hour delivery for design validation; supports iterative development without production disruption

Integrated Ecosystem Workflow

Suzhou Baoshida’s ecosystem operates as a single, data-driven workflow:
Formula Engineers define material specs (e.g., NBR for hydraulic systems, EPDM for weather resistance) per ASTM D2000, then transmit digital specifications to Mould Engineers.
Mould Engineers optimize tooling using simulation software (e.g., Moldflow), ensuring ±0.005mm dimensional accuracy before tooling production.
Process Engineers deploy standardized work instructions across partner facilities, with real-time IoT monitoring of Shore A hardness and compression set during production.
Partner factories execute production with synchronized quality checkpoints—e.g., material testing at Specialty Material Labs before full-scale runs.

This integrated approach reduces time-to-market by 40% while guaranteeing compliance with the most stringent industry standards (e.g., SAE J200, ISO 3601). For customers facing urgent hydraulic seal requirements, our ecosystem delivers ASTM D2000-certified components in ≤14 days—including tooling, prototyping, and production—without compromising precision or material integrity.

---

Customization & QC Process

Quality Control & Customization Process

Suzhou Baoshida’s precision rubber seal manufacturing follows a rigorous 4-step process, supported by a specialized 5+2+3 Engineering Team Structure (5 Mould, 2 Formula, 3 Process engineers) to ensure compliance with ASTM D2000, ISO 3601, and industry-specific performance requirements. All engineers possess 15+ years of experience in automotive, hydraulic, and industrial sealing applications.

---

Step 1: Drawing Analysis & GD&T Validation

Structural engineers from the Mould Engineering team conduct a comprehensive GD&T analysis of customer-provided CAD drawings. This includes:
Tolerance stack-up evaluation per ASME Y14.5 standards
Seal geometry validation against ISO 3601 and SAE J2044
Interface compatibility checks for high-pressure hydraulic systems (up to 400 bar)
Finite Element Analysis (FEA) for stress distribution under dynamic loads

All analyses are performed by senior engineers with 15+ years of experience in automotive and aerospace sealing systems, ensuring dimensional accuracy within ±0.05mm.

---

Step 2: Material Formulation & ASTM D2000 Compliance

The Formula Engineering team (2 senior specialists with 15+ years in elastomer chemistry) develops custom formulations optimized for:
Compression set (ASTM D395)
Shore A hardness (30–90)
Chemical resistance per ASTM D2000 Type classifications
Thermal stability (up to 250°C for FKM)

Standard Material Specifications for Pump Seals

Material	ASTM D2000 Type	Hardness (Shore A)	Compression Set (70h @ Temp)	Heat Aging Performance	Key Chemical Resistance
NBR	2	70 ± 5	≤35% @ 100°C	Tensile retention ≥70%	Petroleum oils, hydraulic fluids
FKM	3	80 ± 5	≤25% @ 150°C	Tensile retention ≥80%	High-temp oils, fuels, acids
EPDM	1	60 ± 5	≤40% @ 70°C	Tensile retention ≥65%	Water, steam, ozone, polar solvents

Formulations undergo accelerated aging tests (ASTM D573) and dynamic fatigue testing (ASTM D412) to validate longevity under real-world conditions.

---

Step 3: Prototyping & Validation

Mould team fabricates precision tooling (±0.01mm tolerance) using CNC machining and EDM processes.
Prototypes undergo:
100% dimensional inspection via CMM (Coordinate Measuring Machine)
Compression set testing per ASTM D395 (70h @ application-specific temperatures)
Chemical resistance screening (ASTM D471) for 200+ fluids (e.g., ATF, brake fluid, biodiesel)
FMEA (Failure Mode and Effects Analysis) for critical failure modes
Final validation includes live-system testing in simulated hydraulic/pump environments (ISO 10100).

All prototyping data is documented in traceable QA reports with real-time IoT sensor monitoring.

---

Step 4: Mass Production & QC

Process Engineering team implements:
ISO 9001:2015-compliant production workflows with SPC (Statistical Process Control) for Shore hardness (±2 units) and dimensions (±0.03mm)
Real-time vulcanization control (temperature ±1°C, pressure ±0.5 bar)
Automated optical inspection (AOI) for surface defects and flash
Final QC includes:
Batch testing for compression set (ASTM D395), tensile strength (ASTM D412), and tear resistance (ASTM D624)
100% visual inspection under 10x magnification
Third-party certification (e.g., SGS, TÜV) for critical aerospace/automotive applications

All production data is integrated into SAP QM modules for full traceability from raw material to finished seal.

---

Engineering Team Structure (5+2+3)

Team Component	Role	Engineers	Key Responsibilities	Senior Engineers (15+ YOE)
Mould	Precision Tooling Design & Fabrication	5	GD&T analysis, CNC/EDM mould machining, dimensional validation	5
Formula	Elastomer Material Development	2	NBR/FKM/EPDM formulations, ASTM D2000 compliance, chemical resistance testing	2
Process	Manufacturing Process Optimization	3	Injection molding, vulcanization, in-line QC protocols, SPC implementation	3

All engineers undergo annual training in ISO 17025 laboratory standards and ASME Y14.5 GD&T principles. Cross-functional collaboration ensures seamless transition from design to production.

---

Contact Our Engineering Team

Contact Suzhou Baoshida

Engineering Excellence: 5+2+3 Specialized Team Structure

Our cross-functional team ensures end-to-end precision in pump seal manufacturing through rigorous specialization:

Role	Count	Core Responsibilities
Mould Engineers	5	Precision mold design, thermal stability analysis, cavity optimization for <0.01mm tolerance, and flow simulation per ISO 1629
Formula Engineers	2	Material formulation (NBR/FKM/EPDM), ASTM D2000 compliance (Class A/B/C), compression set ≤15% @ 150°C/70h, Shore A 30–90 validation, and chemical resistance testing (per ASTM D471)
Process Engineers	3	Compression molding parameter control (120–200°C), in-line QC protocols (ISO 9001), accelerated aging testing per ASTM D573, and dimensional stability validation

Solve Your Sealing Problems Today

Leverage our 15+ years of industry-specific expertise for mission-critical sealing solutions.

Mr. Boyce
Lead Technical Solutions Engineer
📧 [email protected]
📞 +86 189 5571 6798

Custom material selection, ASTM D2000-compliant specifications, and 24/7 technical support for automotive, hydraulic, pump/valve, and heavy machinery applications.

---
