Rubber Seals
Y Seals and Y O-Rings

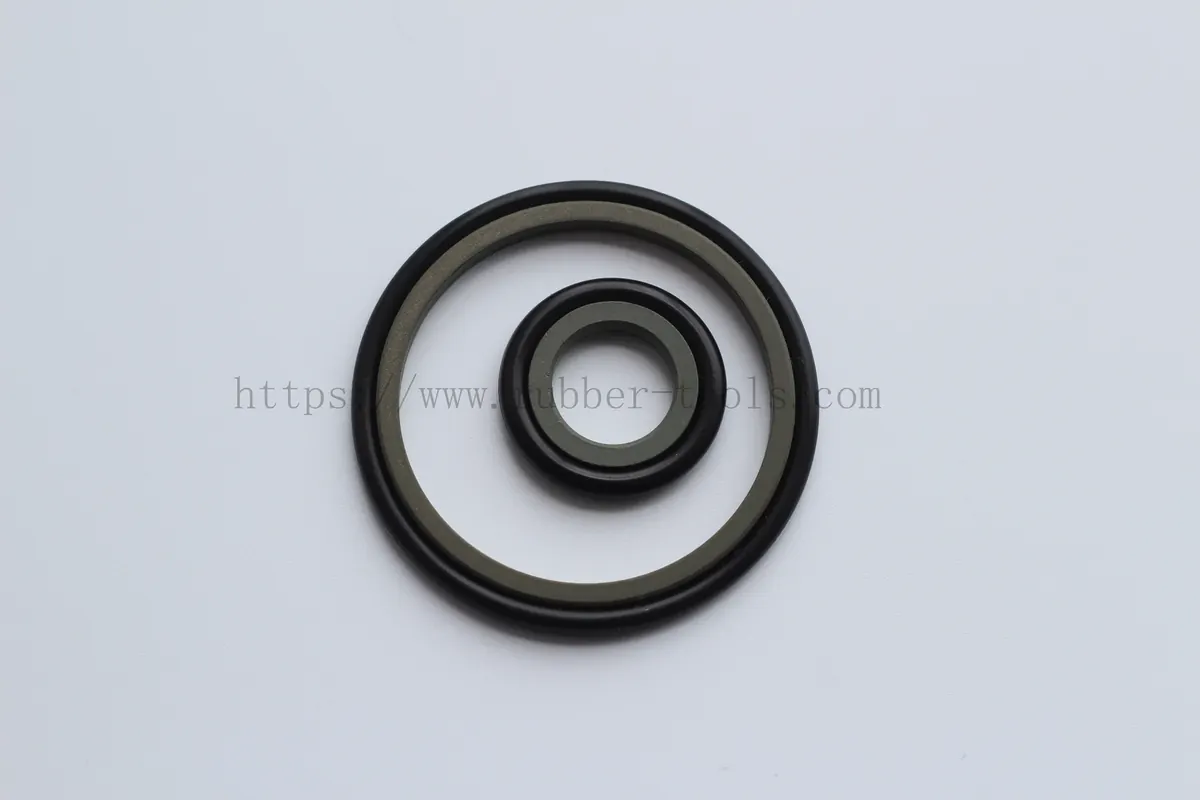

A plain O-ring is not the right answer for every dynamic duty, which is why the Y profile exists. Our range runs from the standard hole shaft universal type commonly called the Y-ring through to YX hole, YX shaft, QY hole, QY shaft, high and low Y-type hole and shaft seal rings, and Ky shaft types. Each is designed around the ratio of inner and outer lips, the cross section, the angle between the two lips and the height.
Why It Wins
Key Benefits
- A profile designed for dynamic duty rather than adapted from a static one
- Hole and shaft variants so the seal suits the direction of pressure
- Design parameters controlled deliberately rather than copied approximately
- Custom profiles tooled in our own mould workshop
- Available in the same compound range as the rest of our seal programme
The Brief
Problems It Solves
- Plain O-rings wearing rapidly in reciprocating service
- Seal profiles specified by outline only, without lip geometry
- Hole and shaft types confused, so the pressure acts on the wrong lip
- Discontinued profiles with no remaining supplier
Audience
Who It Is For
- Hydraulic and pneumatic cylinder manufacturers
- Equipment rebuilders replacing worn dynamic seals
- Design engineers specifying a dynamic seal for the first time
- Distributors supplying hydraulic seal kits
In Service
Application Scenarios
- Hydraulic cylinder rod and piston sealing
- Pneumatic actuator sealing
- Automotive applications preventing fluid leakage between moving parts
- Reciprocating equipment where a plain O-ring wears too quickly
Specification
What You Are Actually Buying
Only values our own records support appear here. Anything we cannot evidence is left out rather than estimated.
| Profile Families | Y-ring hole shaft universal, YX hole, YX shaft, QY hole, QY shaft, high and low Y-type hole and shaft, Ky shaft |
|---|---|
| Design Parameters | Inner and outer lip ratio, cross section, angle between lips, height |
| Duty | Dynamic reciprocating sealing |
| Compounds | Available across our twelve compound range |
| Country of Manufacture | China |
Materials
- NBR
- FKM
- HNBR
- EPDM
- SIR silicone
Manufacturing Process
- Profile selection
- Mould design
- Mould manufacture
- Moulding
- Inspection
- Packing
Detail
Technical Features
- Designed on the ratio of inner and outer lips
- Cross section and lip angle specified rather than approximated
- Height controlled as a design parameter
- Hole and shaft variants across several type families
How We Check
Quality Control
- Profile confirmed against the hardware before tooling
- First article approved by the customer before series
- Lip geometry checked on the moulded part
- Repeat orders run from the same tool
Made to Order
Customisation Options
- Any of the listed hole and shaft type families
- Custom profiles designed from a drawing or a worn sample
- Compound selected against the hydraulic fluid and temperature
- Supplied within a mixed seal order
Honest Comparison
Where This Is the Right Choice and Where It Is Not
Compared With A plain O-ring
In reciprocating duty the lip profile handles pressure and wear in a way a round cross section does not.
Compared With A stock seal kit
Kits cover common sizes. A tooled profile covers the hardware you actually have.
Compared With Wrong hand type
A hole type fitted where a shaft type belongs puts pressure on the wrong lip and leaks from new.
Use Guide
How to Specify and Order This Part
Identify whether the seal works in a hole or on a shaft before choosing a type
Give rod or bore diameter, groove width and depth together
State the hydraulic fluid and temperature so the compound suits it
Send a worn sample where the original type is unknown
Check surface finish on the sealing face during rebuilds
Related Products
Rubber Seals
NBR O-Rings
NBR is the working compound for anything that meets oil or fuel at moderate temperature.
View product →
Rubber Seals
HNBR O-Rings and HNBR Seals
HNBR is the compound we reach for when a nitrile seal has to stay reliable in cold medium service.
View product →
Rubber Products
Rubber Moulds
We have our own mould manufacturing workshop and experienced structural design engineers, so we can independently design and develop rubber moulds rather than pass the work on.
View product →Related Guides and Industries
Guide
How to Choose a Rubber Seal Material in Six Questions
Six questions decide almost every seal material choice. Answer them before you ask for a price, and the quotation you get back will be worth comparing.
Read the guide →
Guide
Compression Transfer and Injection Moulding for Rubber Parts
The moulding process decides tooling cost, cycle time and how much detail a part can carry. Choosing it is a commercial decision as much as a technical one.
Read the guide →Answers
Y Seals and Y O-Rings Questions
Which Y seal types do you supply?
The standard hole shaft universal Y-ring, YX hole, YX shaft, QY hole, QY shaft, high and low Y-type hole and shaft seal rings, and Ky shaft types.
How do I know whether I need a hole or shaft type?
It depends on whether the seal works against a bore or a rod. Send the assembly detail and we will confirm.
Can you make a profile from a worn sample?
Yes. We will produce a drawing for approval before tooling.
Which compounds are available?
The same range as the rest of our seal programme, chosen against the fluid and temperature.
Do you offer bulk pricing?
Pricing improves with quantity. Send the volume with your inquiry and we will quote accordingly.
What is the quotation turnaround?
One working day once we have the profile, size, compound and quantity.
Quote Y Seals and Y O-Rings
Send the size or drawing, the working conditions and the quantity. One working day for a considered reply.
